41002 After performed

Procedure
  1. Turn the power ON.

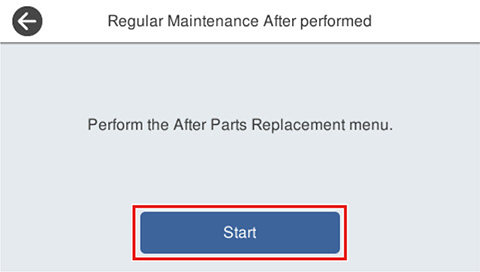

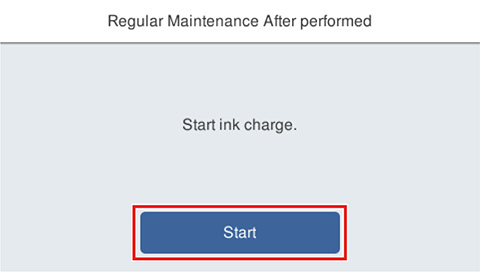

  2. Press [Start].
  3. Press [Start].

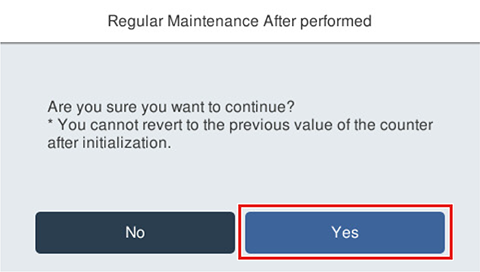

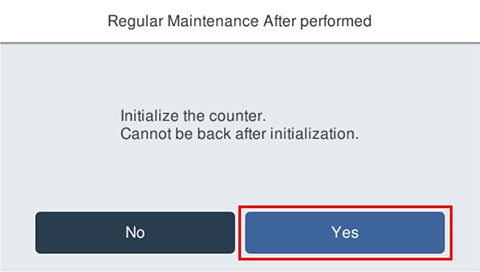

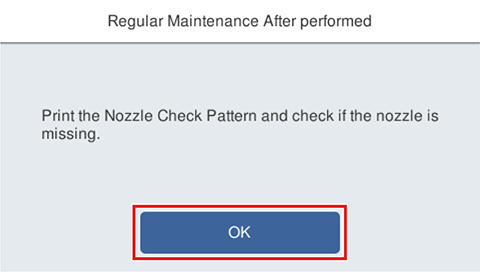

  4. Press [OK].

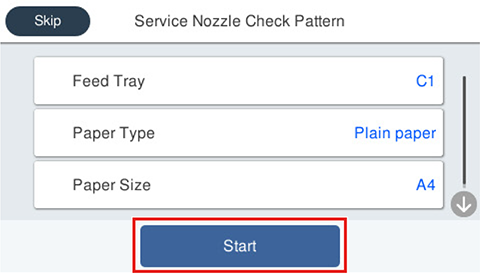

  5. Press each setting item button to make print settings.

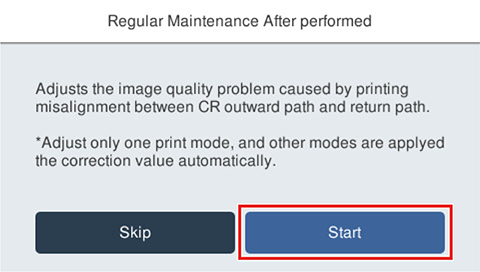

    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4, Rear ASF ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---
  6. Load paper in the selected feed tray and press [Start].


  7. Confirm the check pattern, and confirm that all nozzles with no nozzles missing are correctly ejecting.

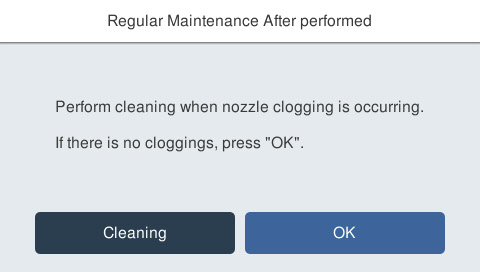

    When all nozzles are correctly ejecting, press [OK] to complete the nozzle check. If a nozzle is missing, press [Cleaning] to execute head cleaning.

  8. Press [Start].

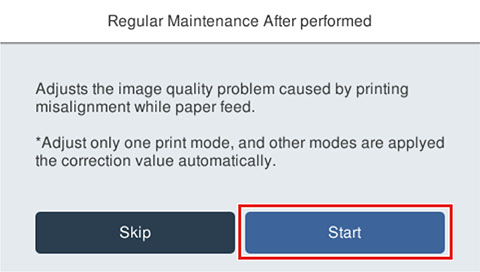

  9. Select [Start].

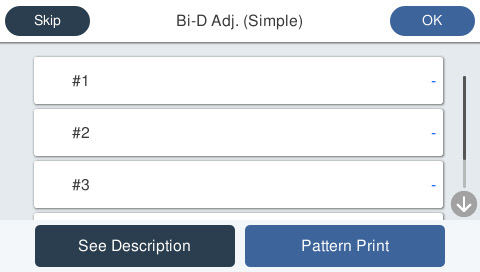

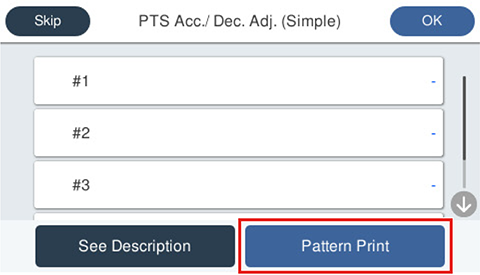

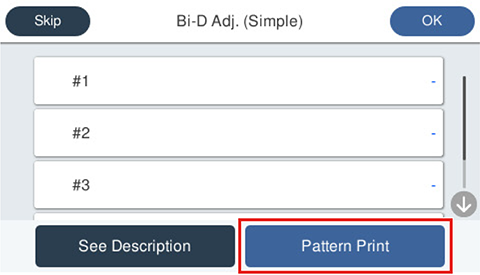

  10. If the following screen is displayed, press [Pattern print].
  11. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4 ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---

  12. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 2 sheets.

    • Adjustment pattern
  13. Press [OK] on the following screen.

  14. Check the adjustment pattern and determine the adjustment values for each of #1 through #4 based on the judgment method.

    Check Point / チェックポイント
    • Adjustment value judgment method
      • Select the pattern for which there is no gap and overlapping of the left and right patterns.
  15. Press on [#1] through [#4] and enter the adjustment value.

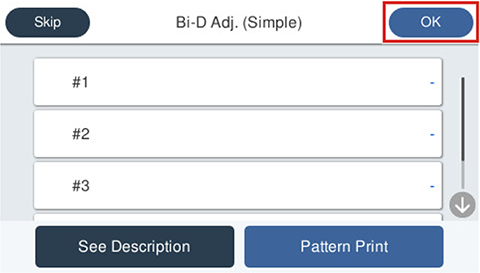

  16. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

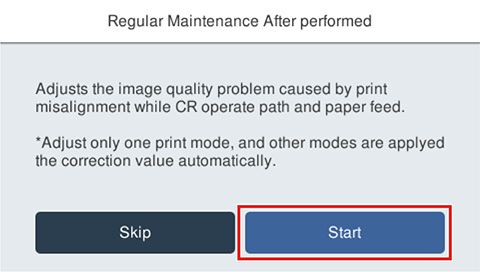

  17. Select [Start].
  18. If the following screen is displayed, press [Pattern print].

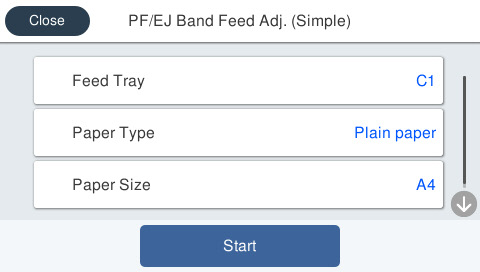

  19. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4 ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---
  20. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

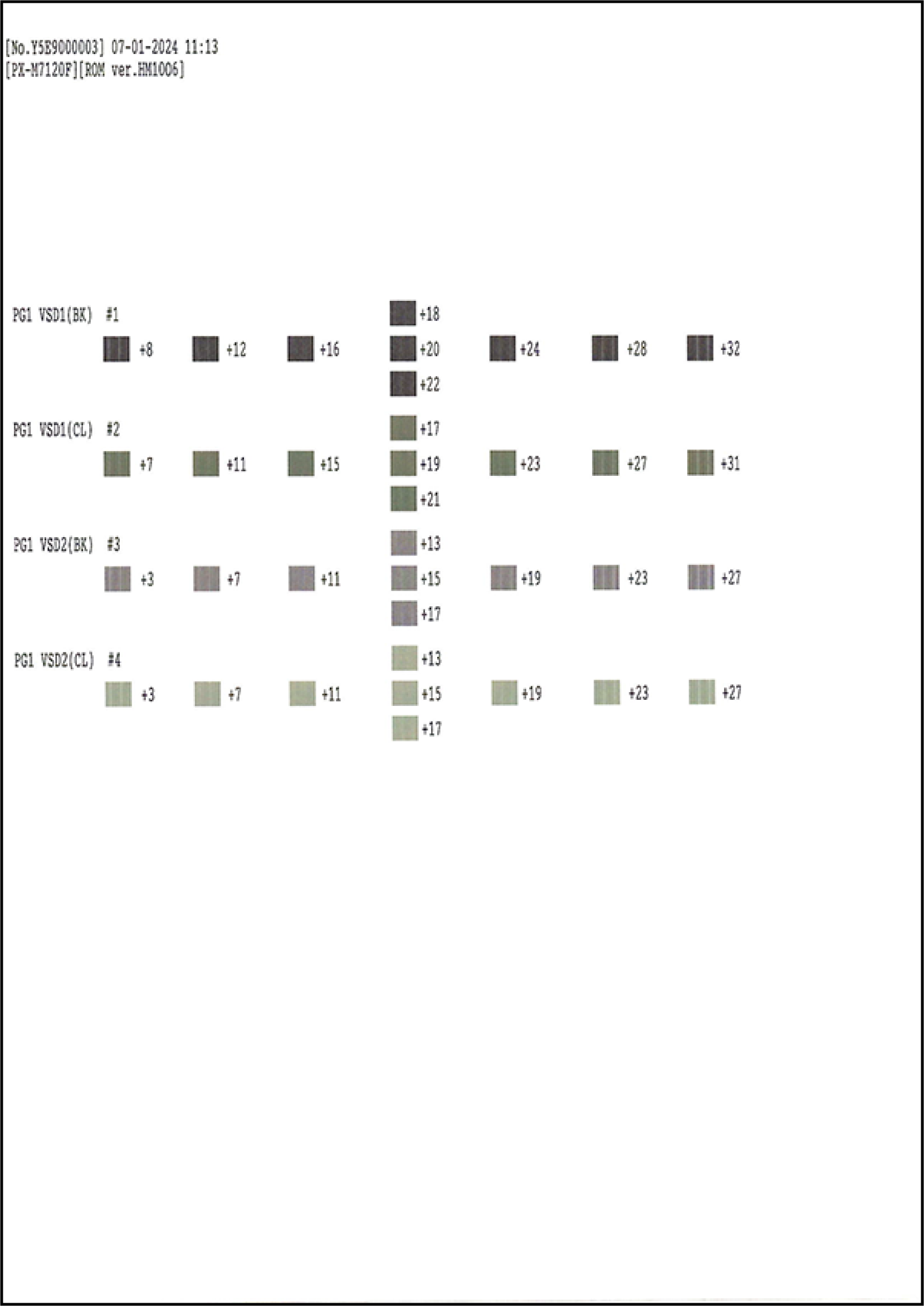

    • Adjustment pattern

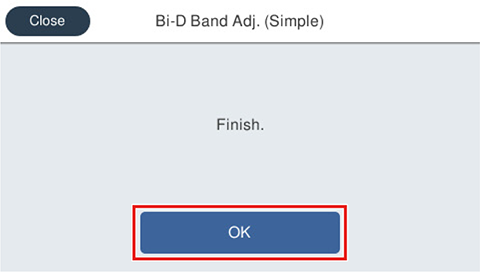

  21. Press [OK] on the following screen.


  22. Check the adjustment pattern and determine the adjustment values for each of #1 through #4 based on the judgment method.

    Check Point / チェックポイント
    • Adjustment value judgment method
      • Select the pattern for which there is no gap and overlapping of the left and right patterns.
  23. Press on [#1] through [#4] and enter the adjustment value.
  24. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
  25. Select [Start].

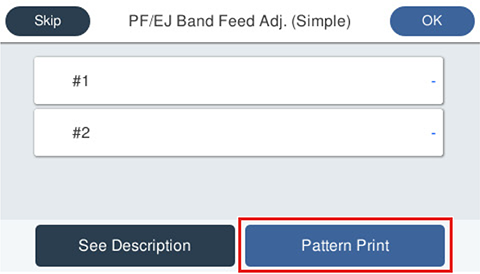

  26. If the following screen is displayed, press [Pattern print].
  27. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4 ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---

  28. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

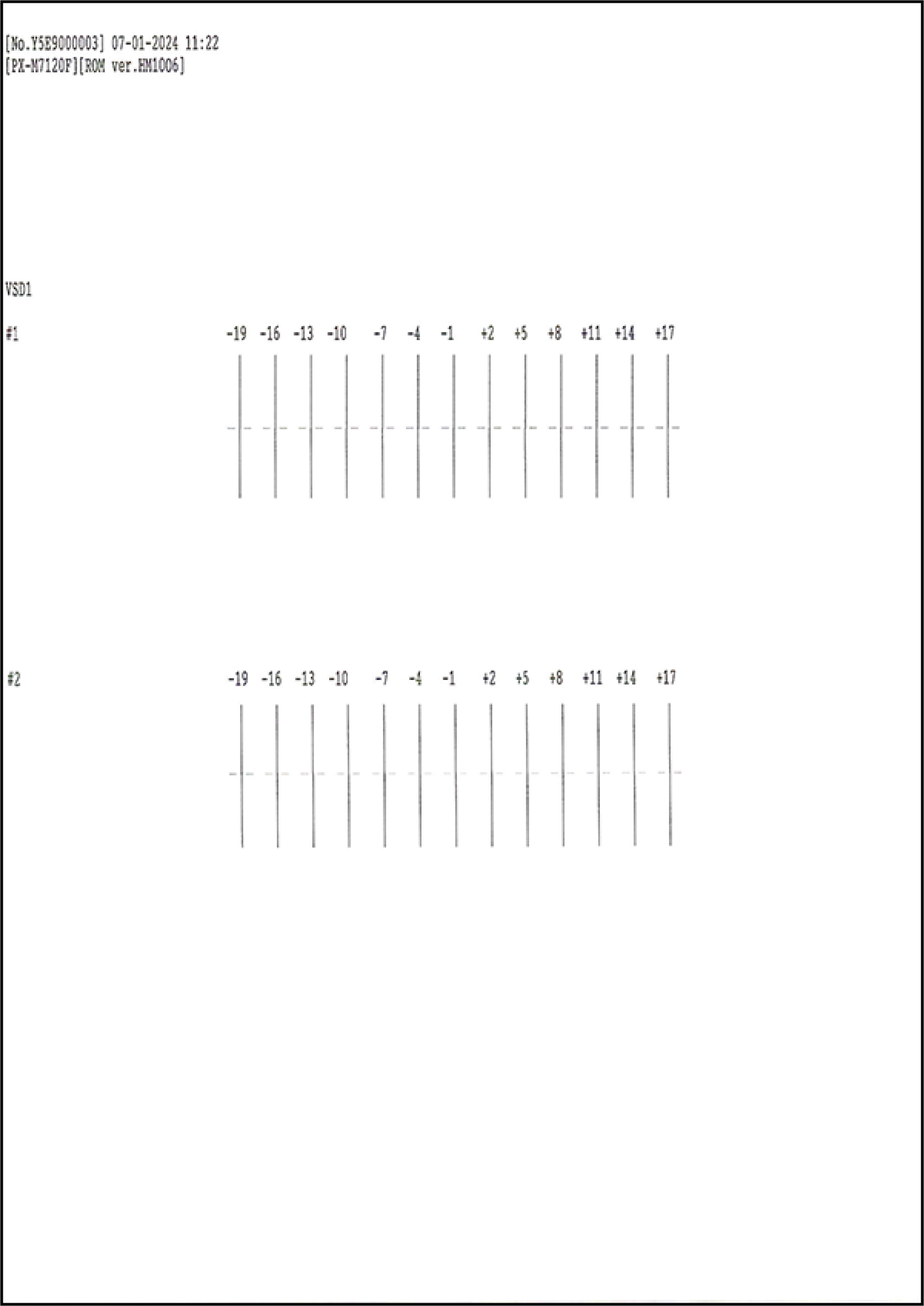

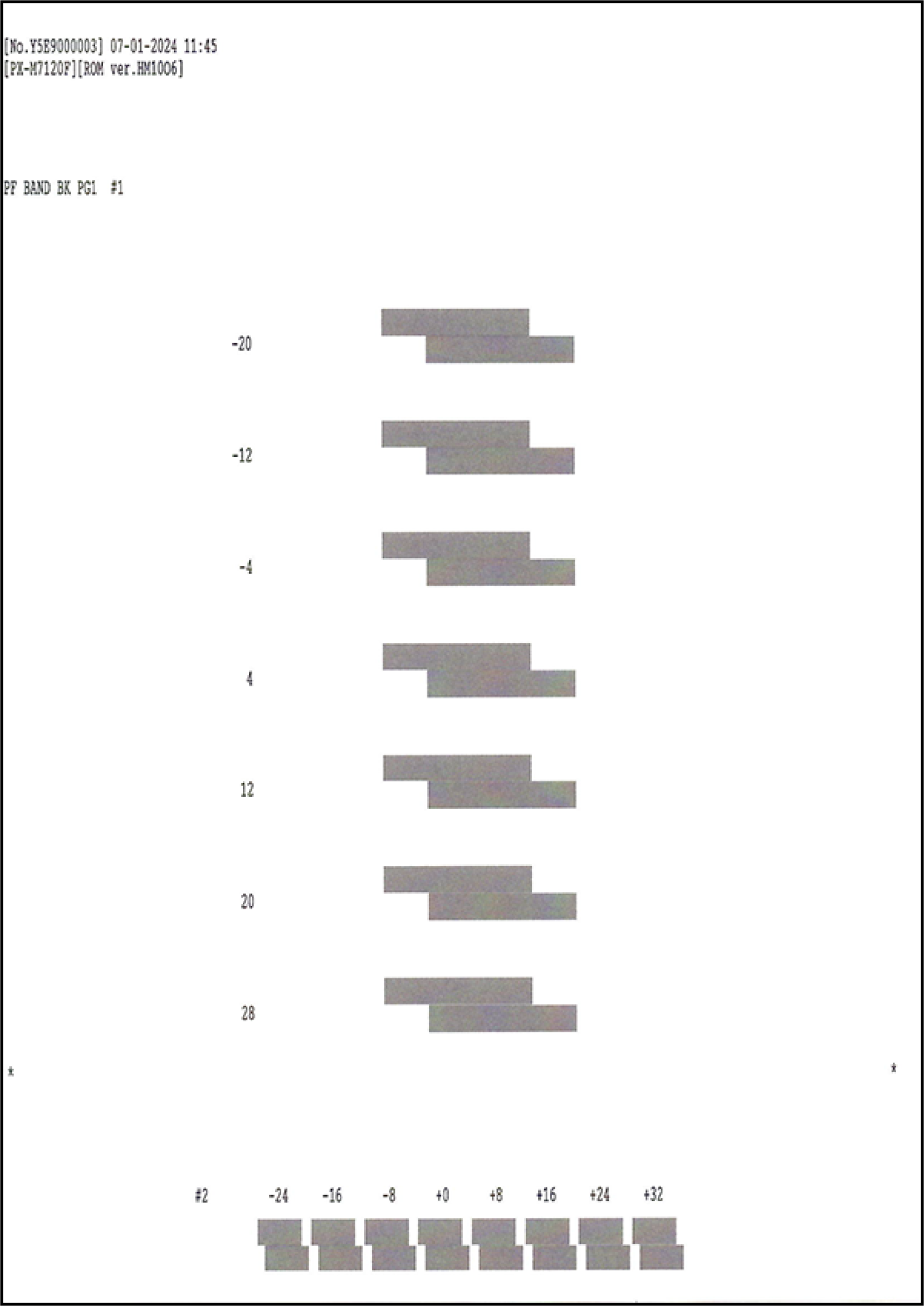

    • Adjustment pattern


  29. Press [OK] on the following screen.


  30. Check the adjustment pattern and determine the adjustment values for each of #1 and #2 based on the judgment method.

    Check Point / チェックポイント
    • Adjustment value judgment method

      • From among the printed patterns, select the pattern where the above and below lines are the straightest.

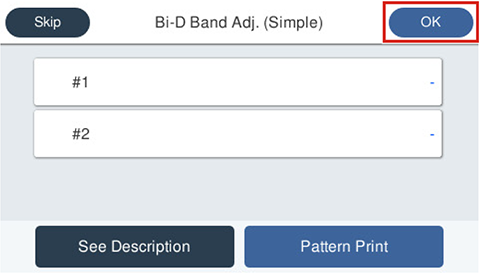

  31. Press on [#1] and [#2] and enter the adjustment value.

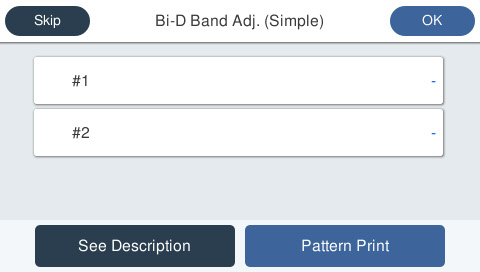

  32. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

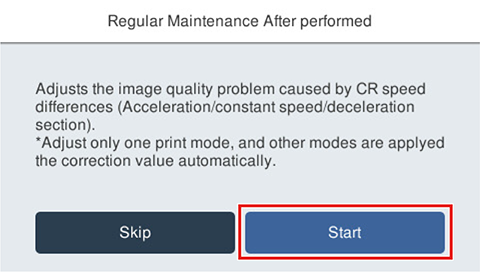

  33. Select [Start].
  34. If the following screen is displayed, press [Pattern print].

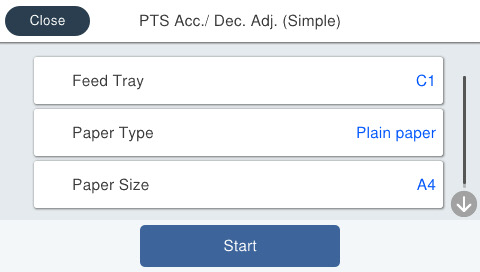

  35. Press [Start].


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4, Rear ASF ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---

  36. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

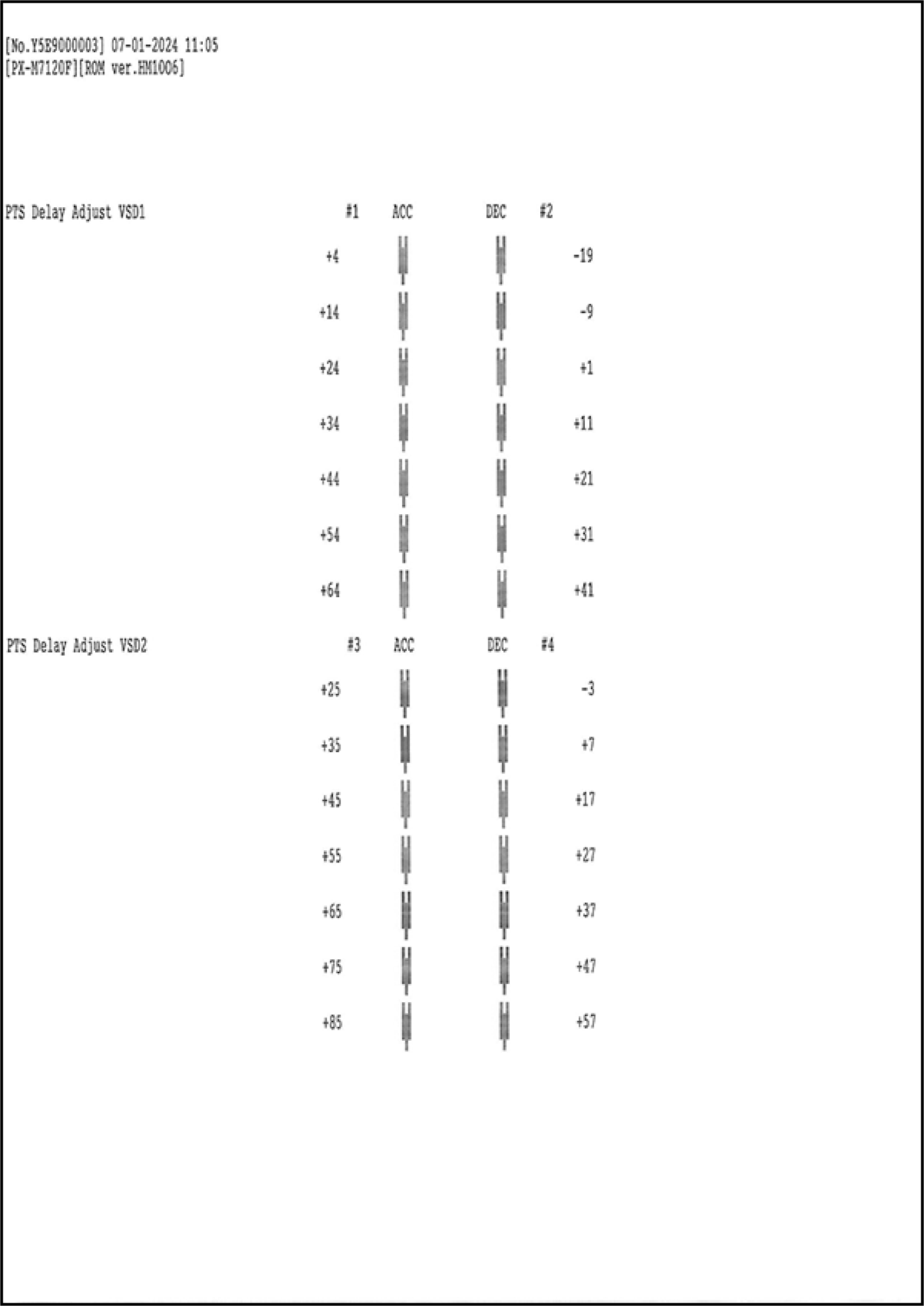

    • Adjustment pattern


  37. Press [OK] on the following screen.


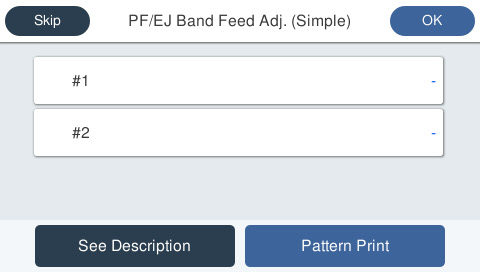

  38. Check the adjustment pattern and determine the adjustment values for each of #1 and #2 based on the judgment method.

    Check Point / チェックポイント
    • Adjustment value judgment method

      • Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.
  39. Press on [#1] and [#2] and enter the adjustment value.

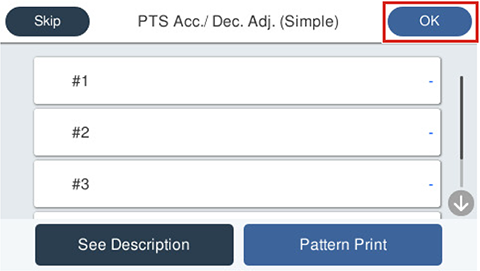

  40. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

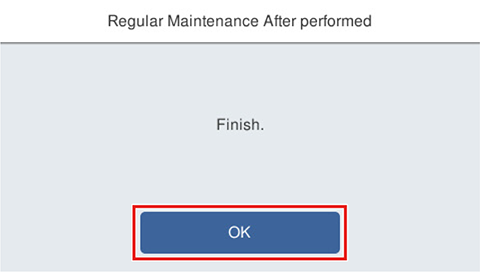

  41. Press [OK].
