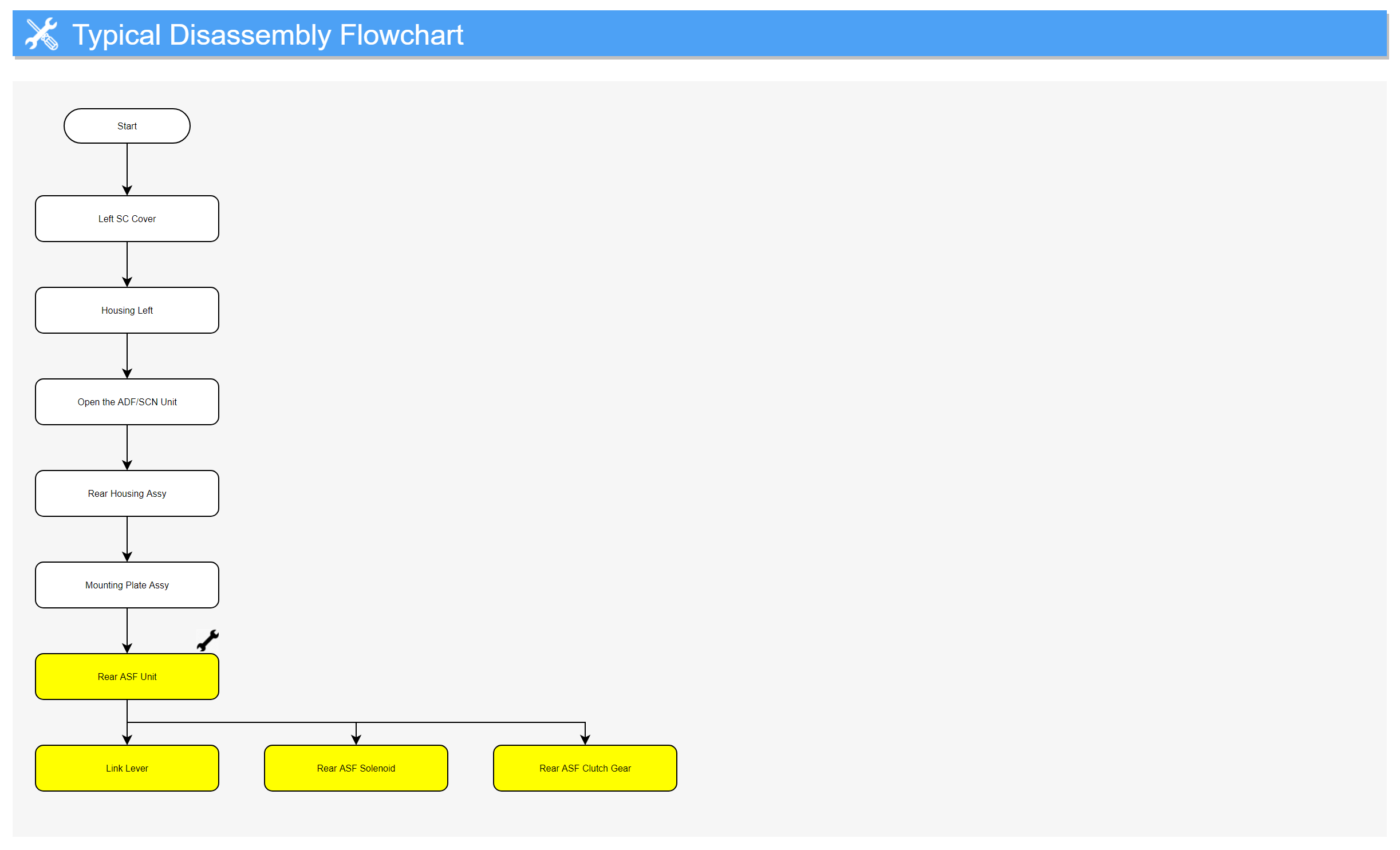

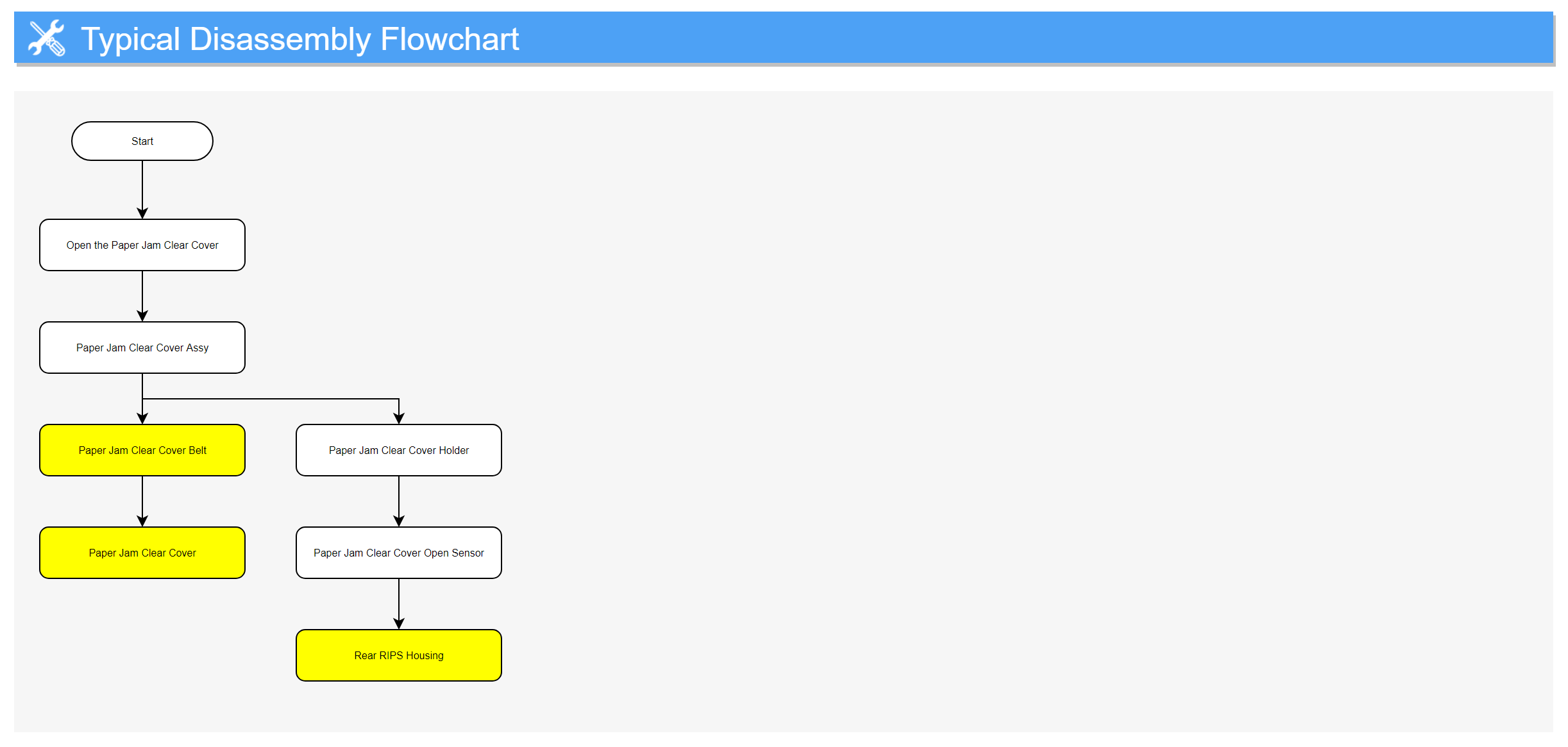

Disassembly Flowchart

Check Point / チェックポイント
  • Meanings of each icon within the flowchart are as below.
    • : Parts requiring pre-replacement work (adjustment) before starting the disassembly step.
    • : Parts requiring lubrication at parts replacement.
  • The yellow colored boxes indicate parts or assemblies for which a procedure is described in this manual.

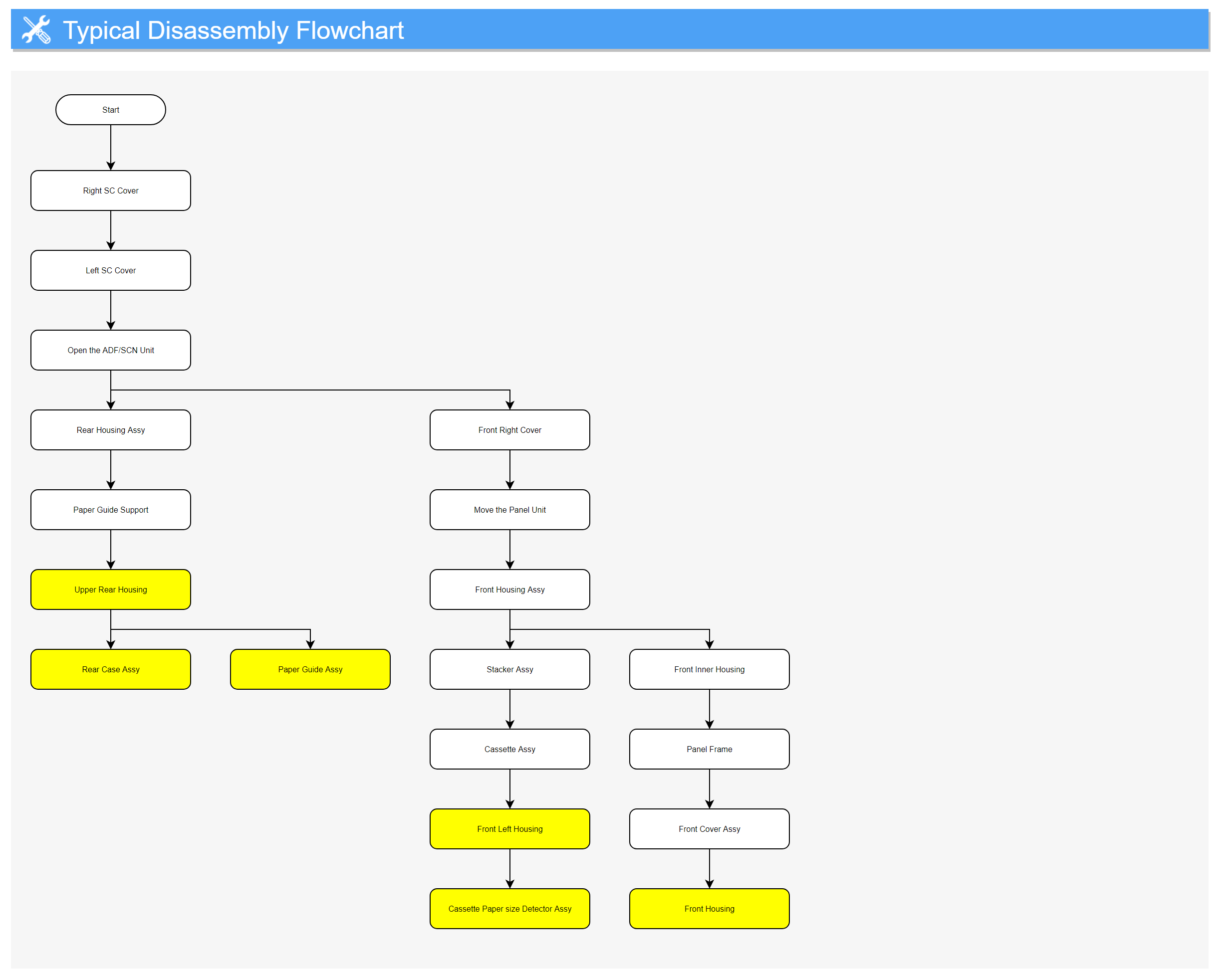

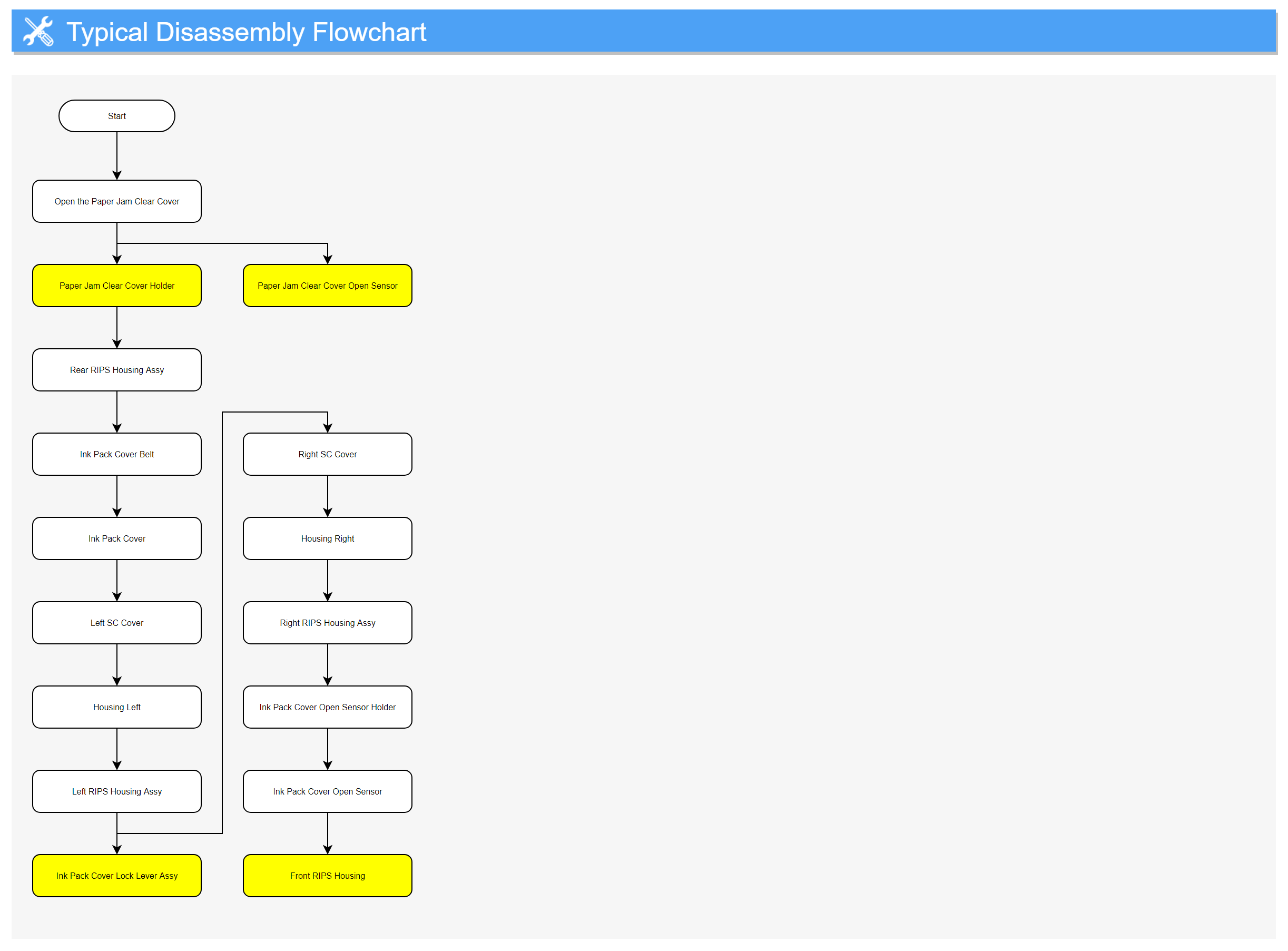

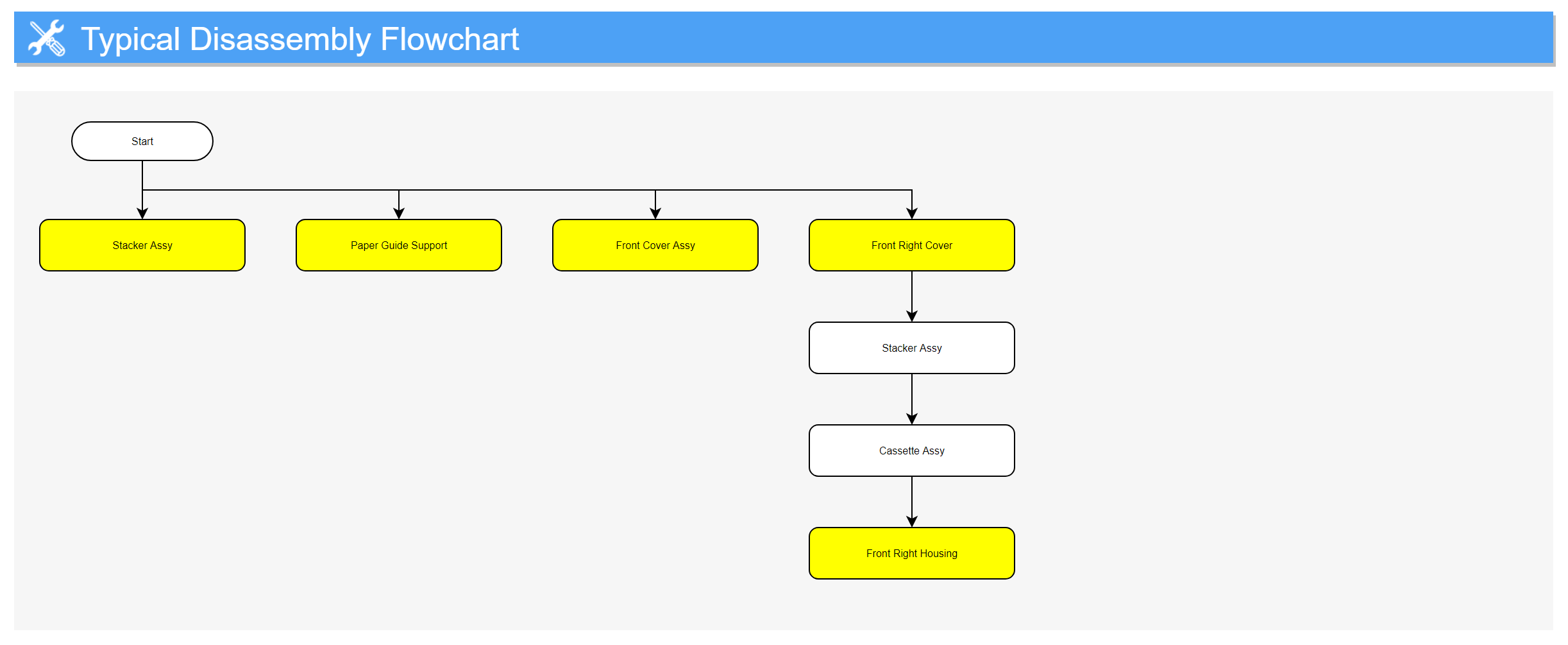

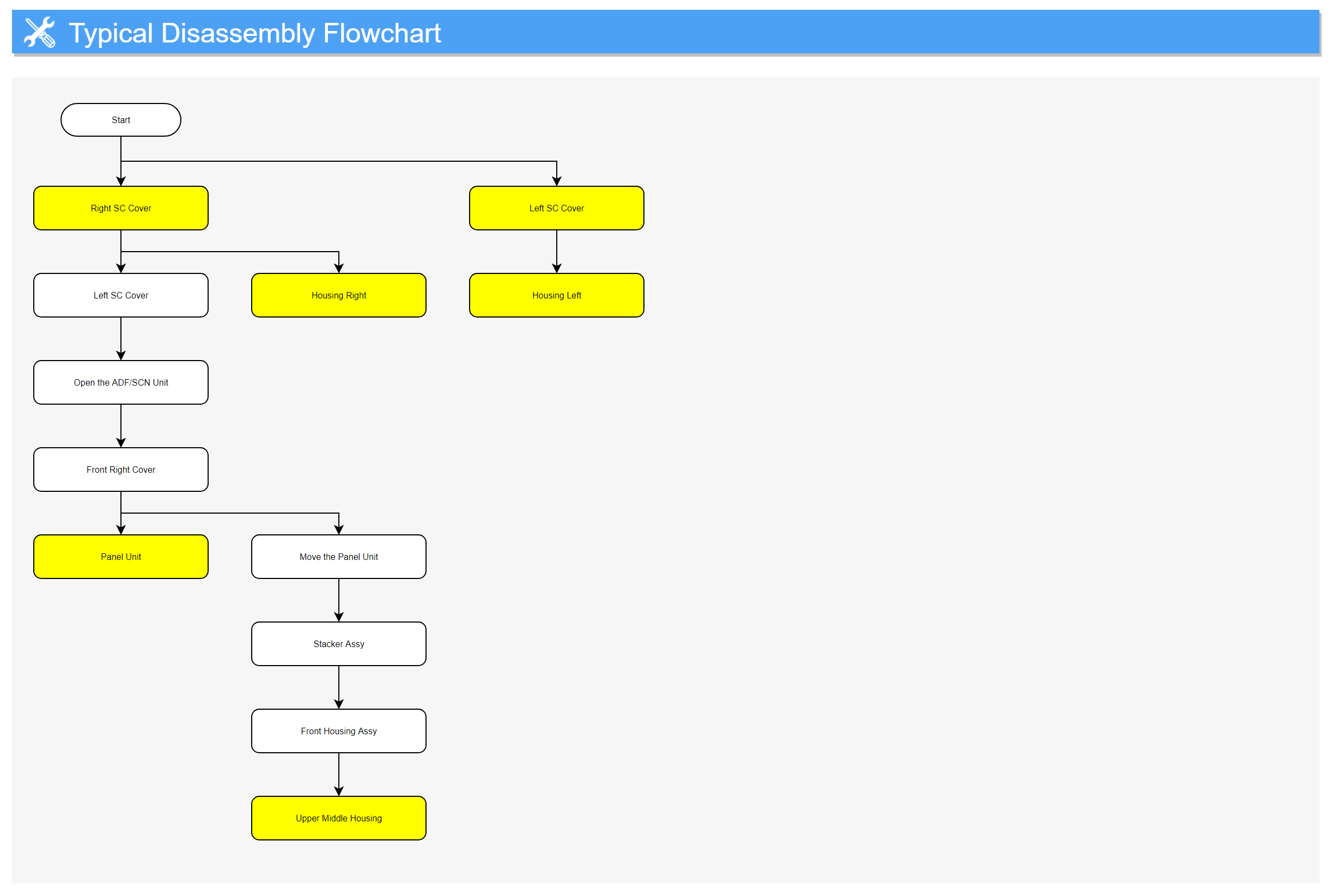

Housing (1/3)

Housing (2/3)

Housing (3/3)

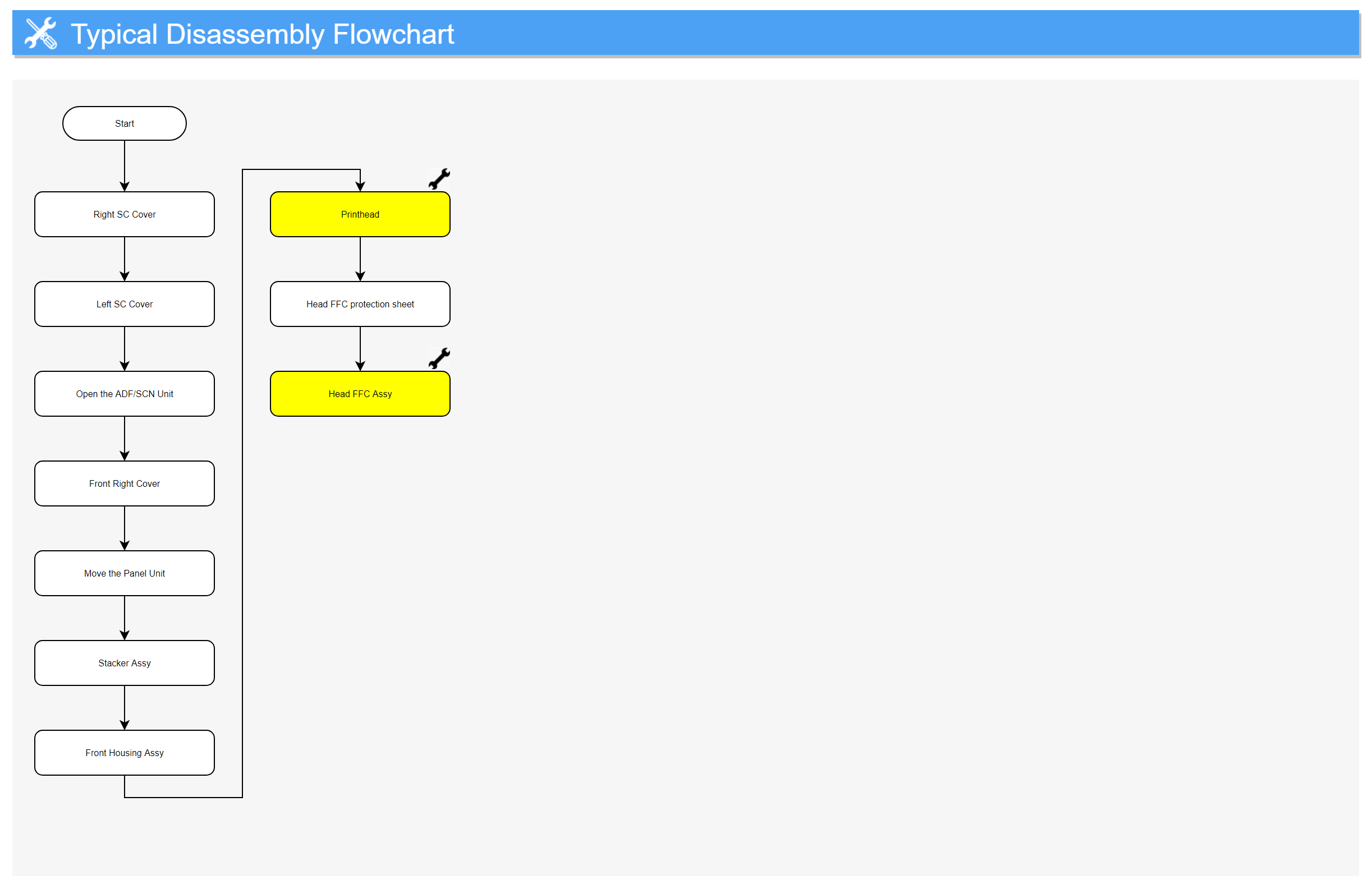

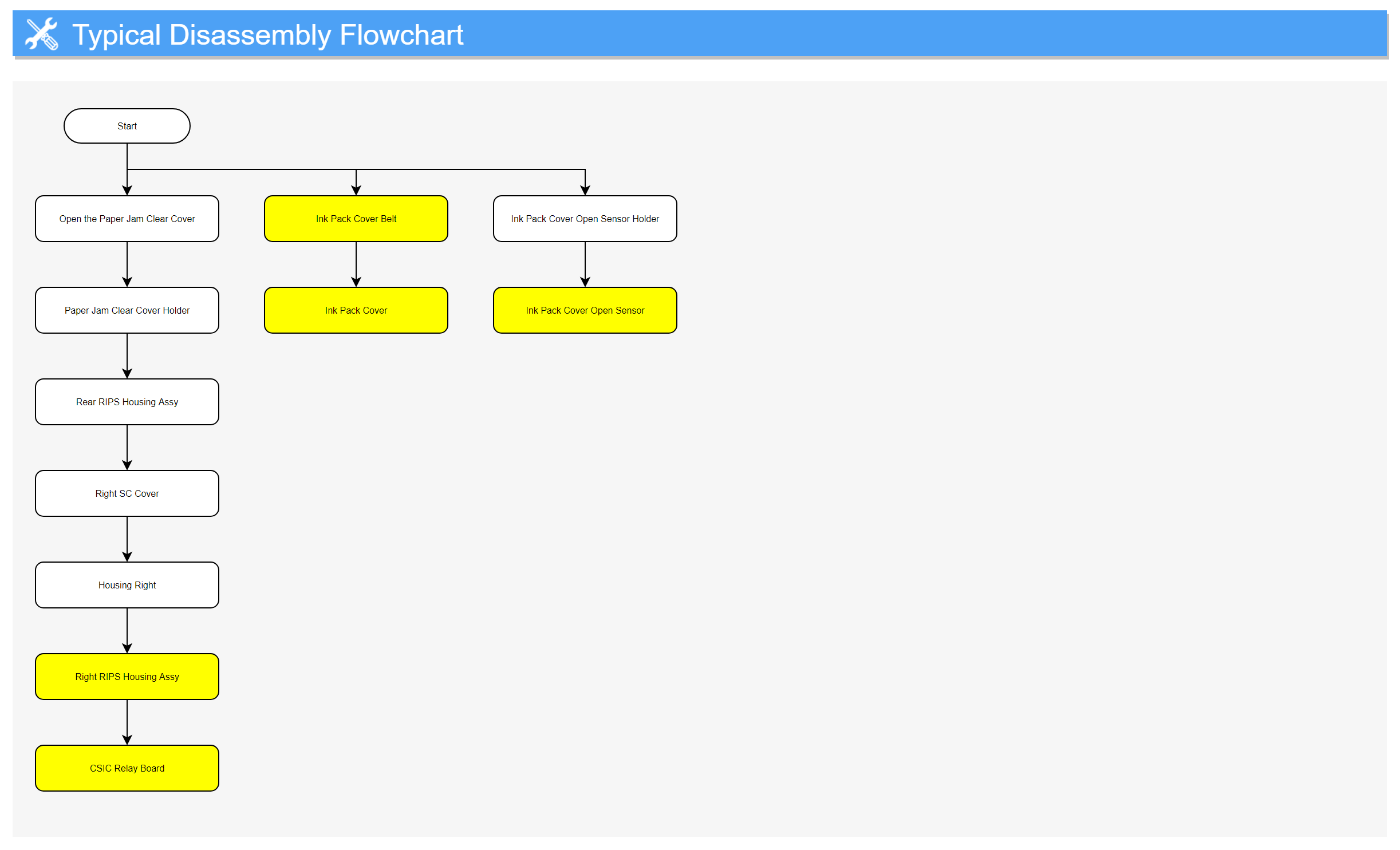

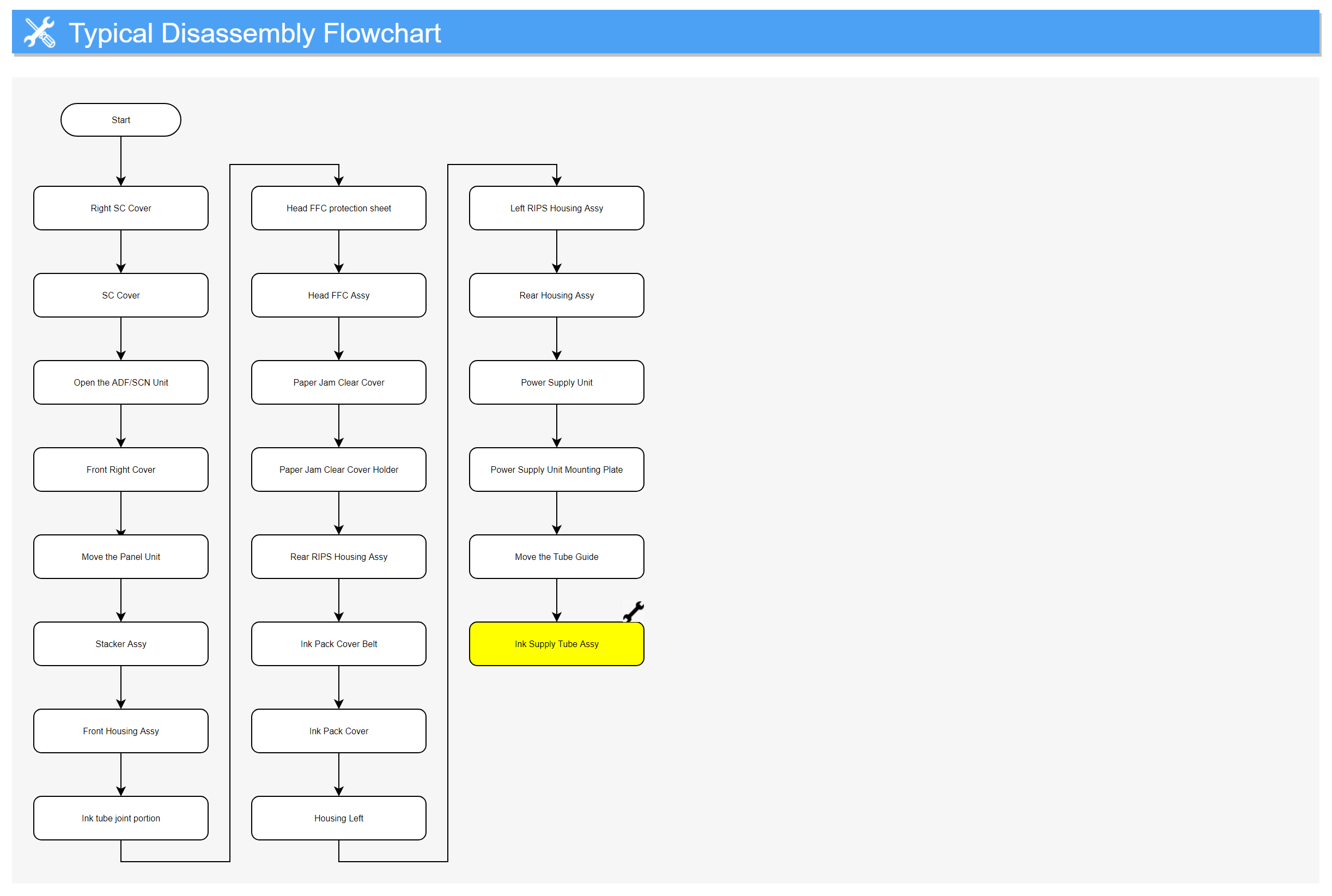

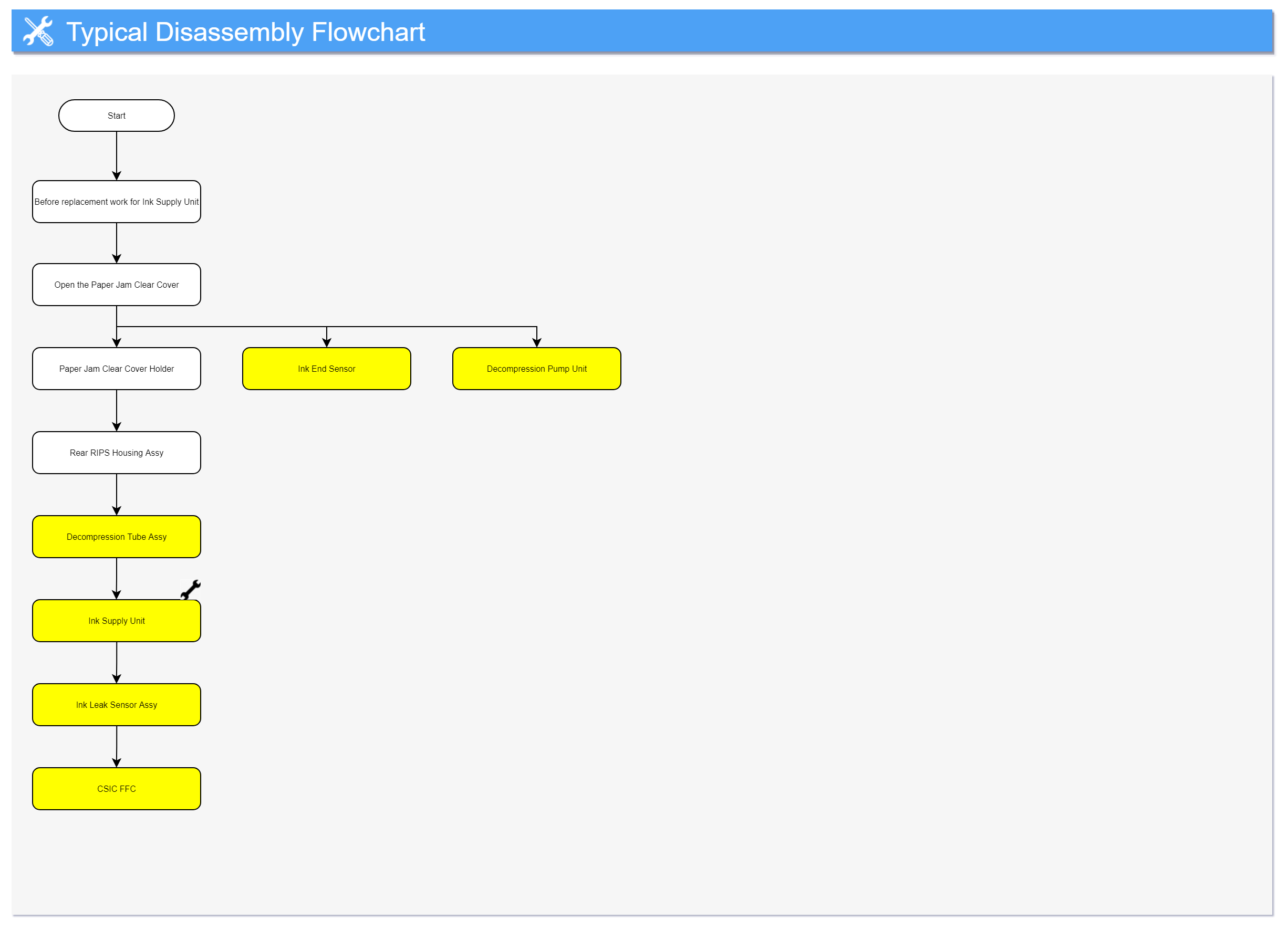

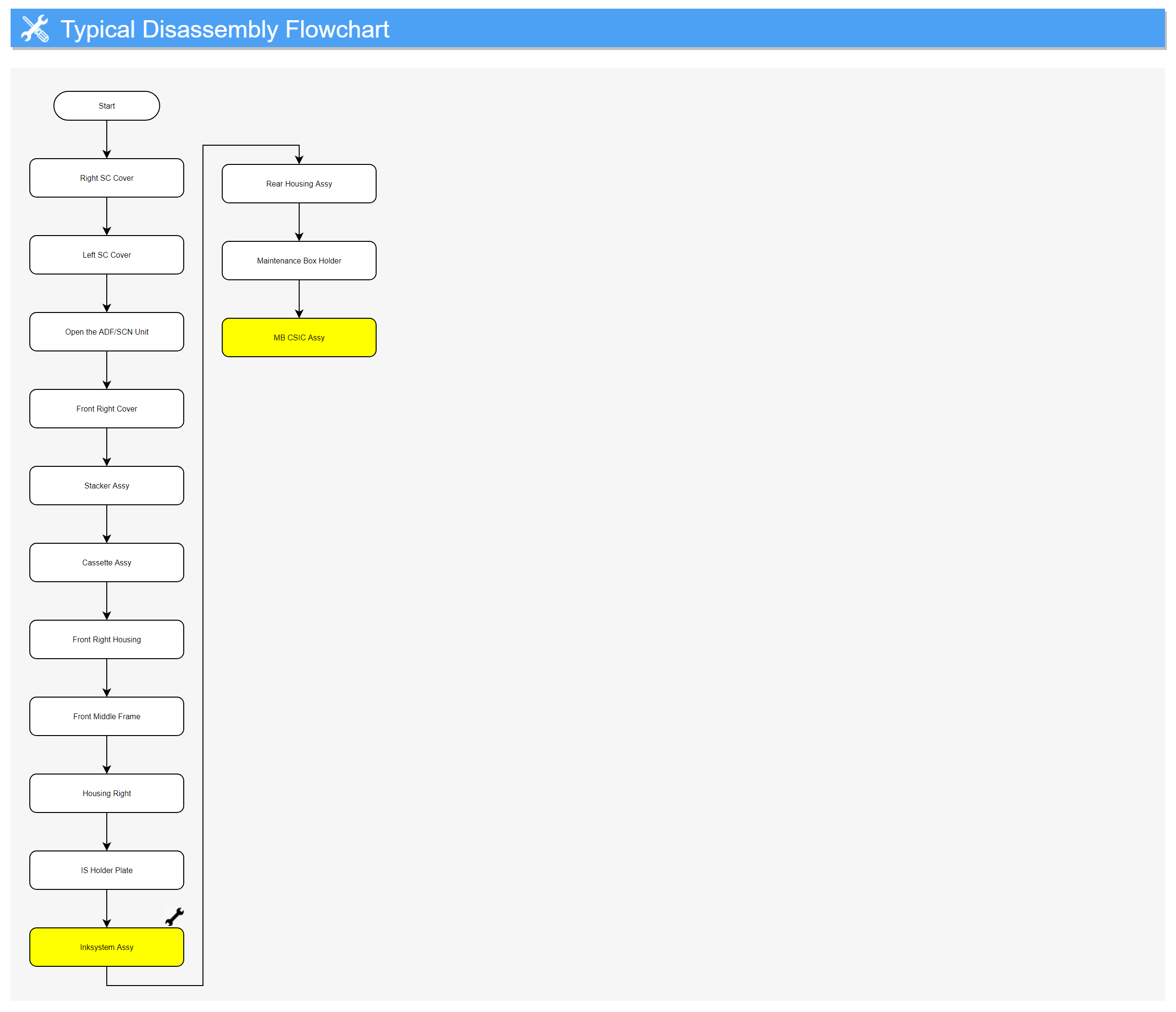

Ink Supply (1/5)

Ink Supply (2/5)

Ink Supply (3/5)

Ink Supply (4/5)

Ink Supply (4/5)

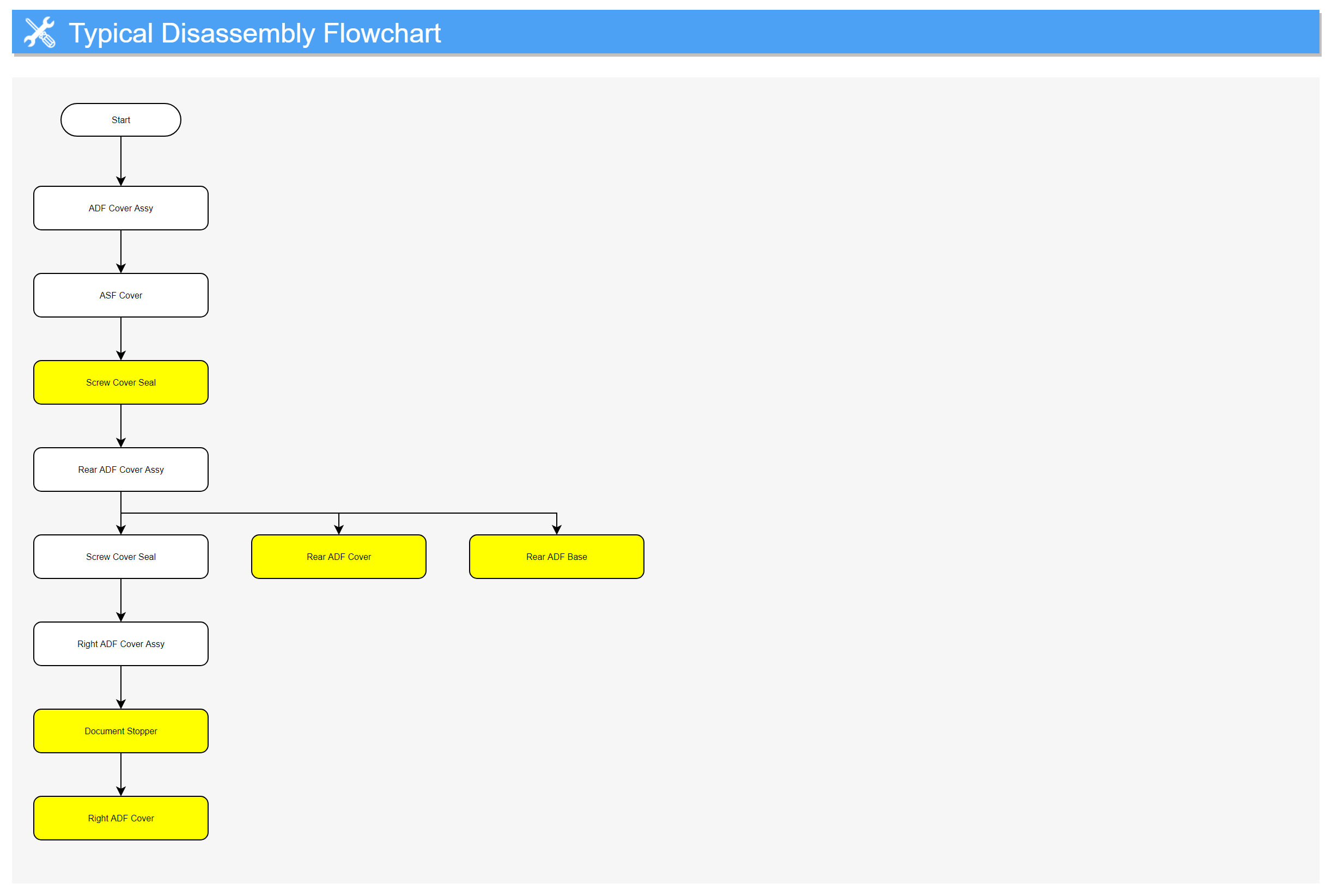

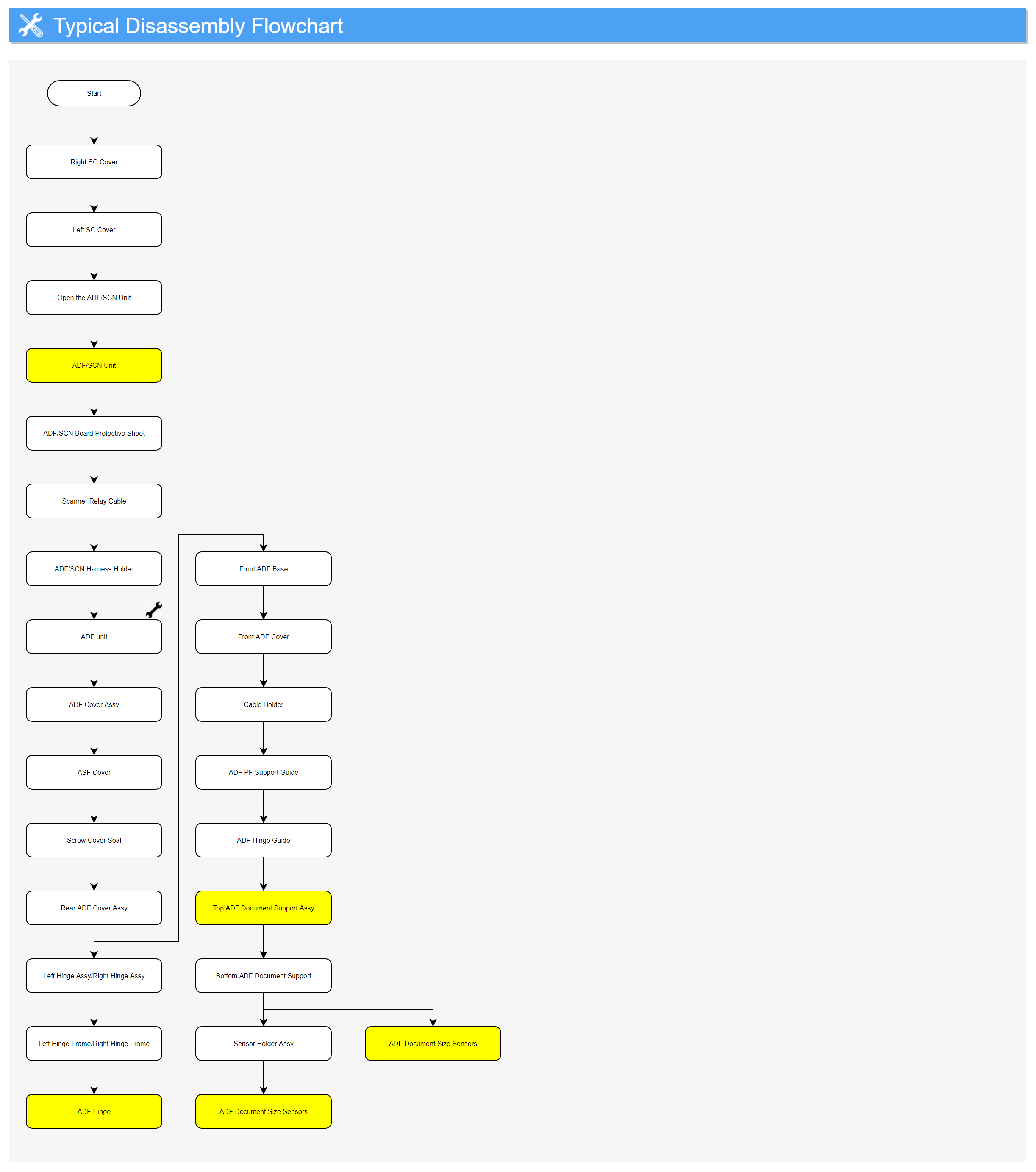

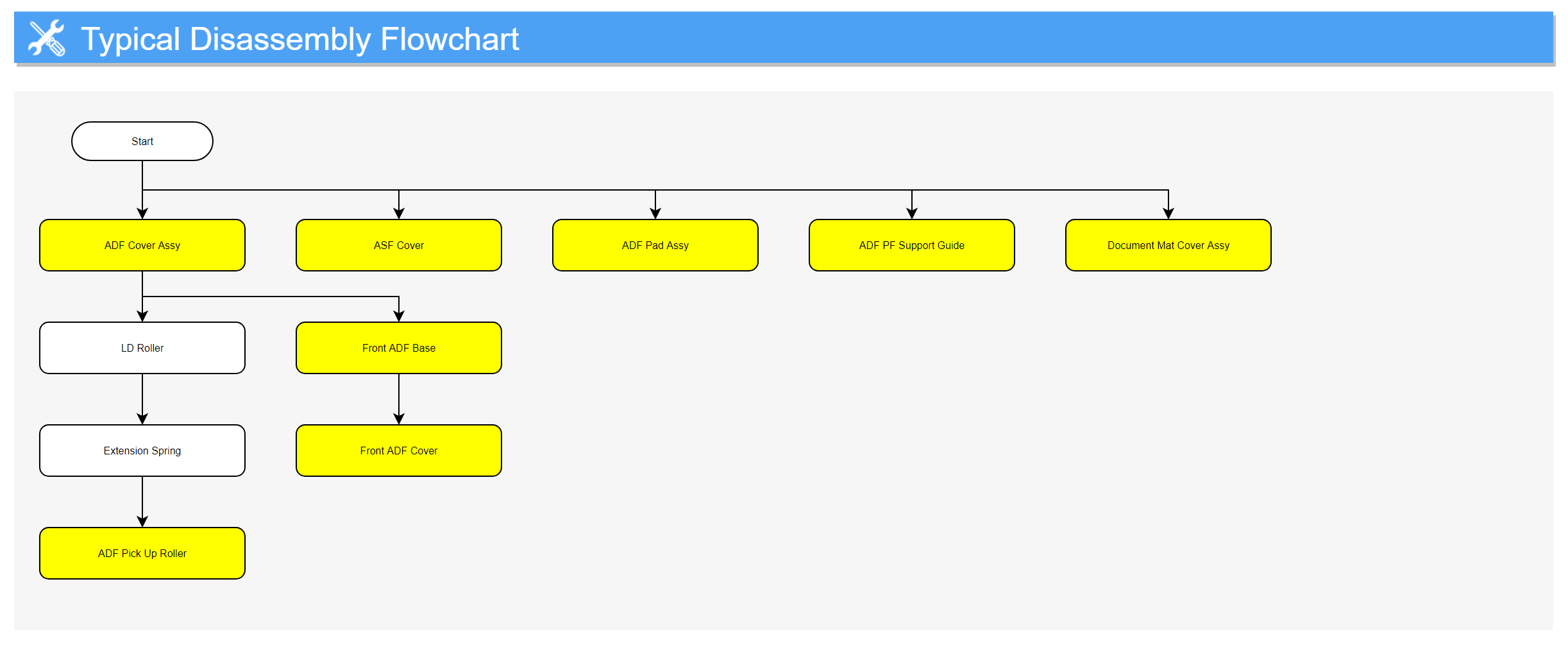

ADF/SCN (1/3)

ADF/SCN (2/3)

ADF/SCN (3/3)

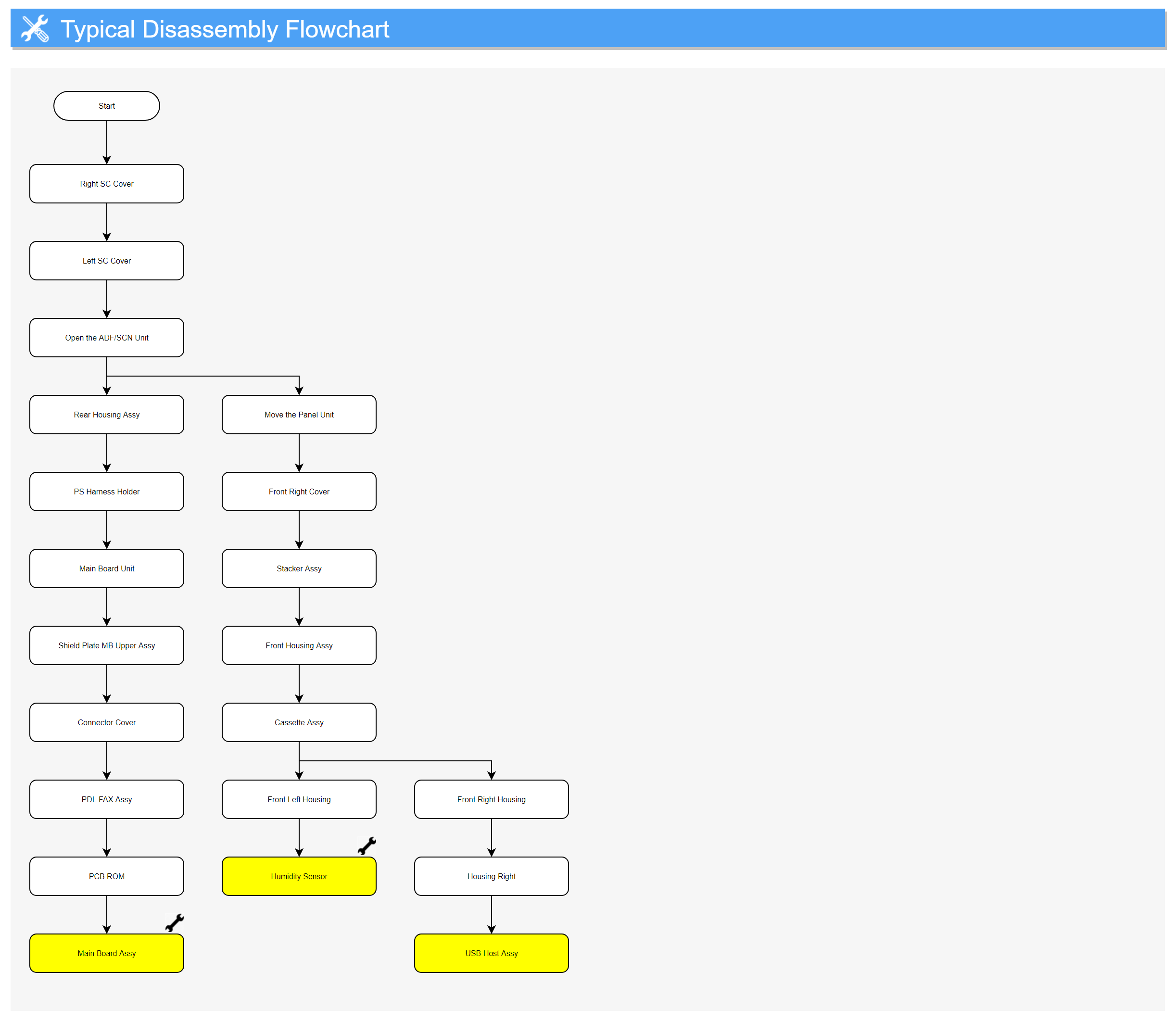

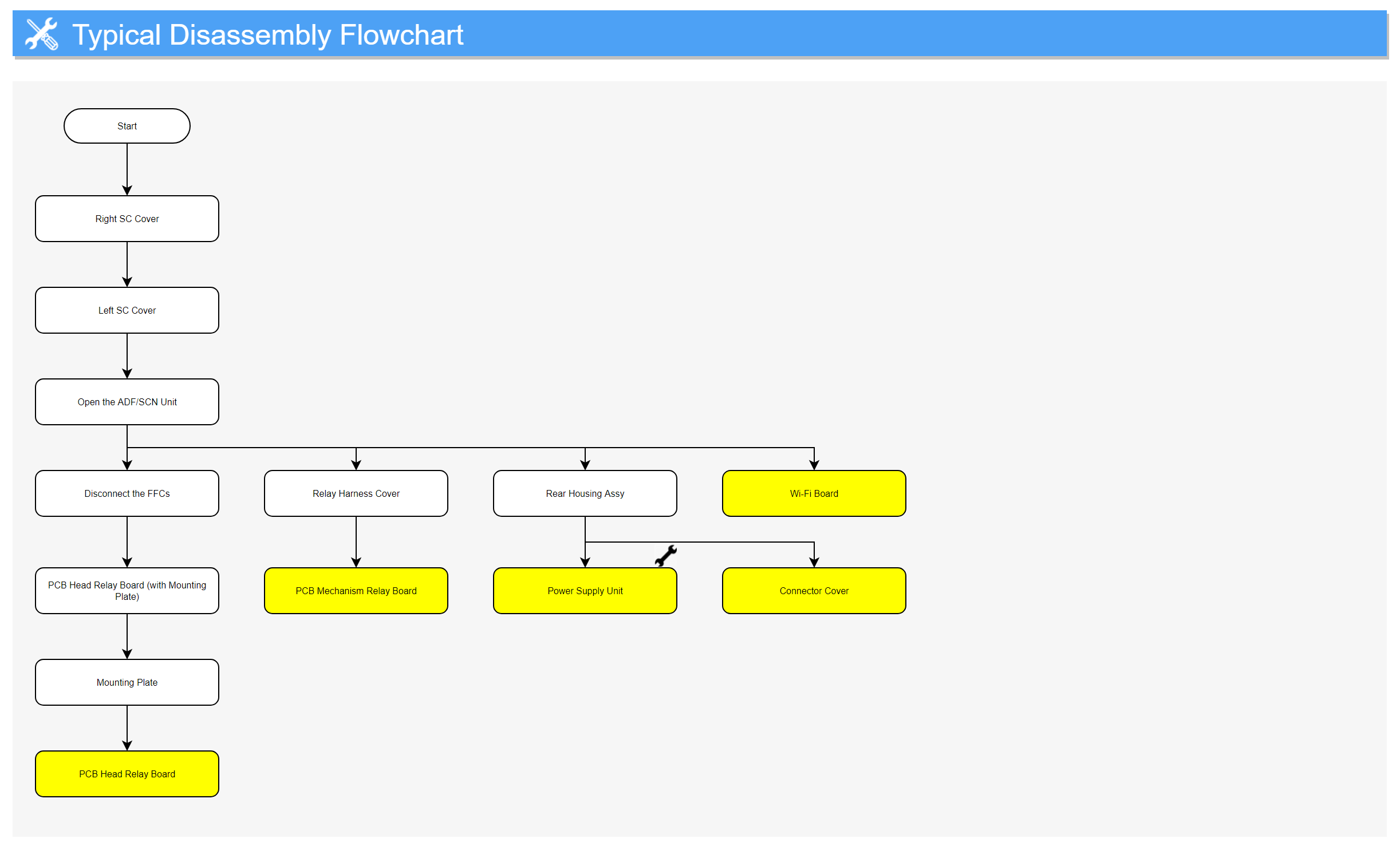

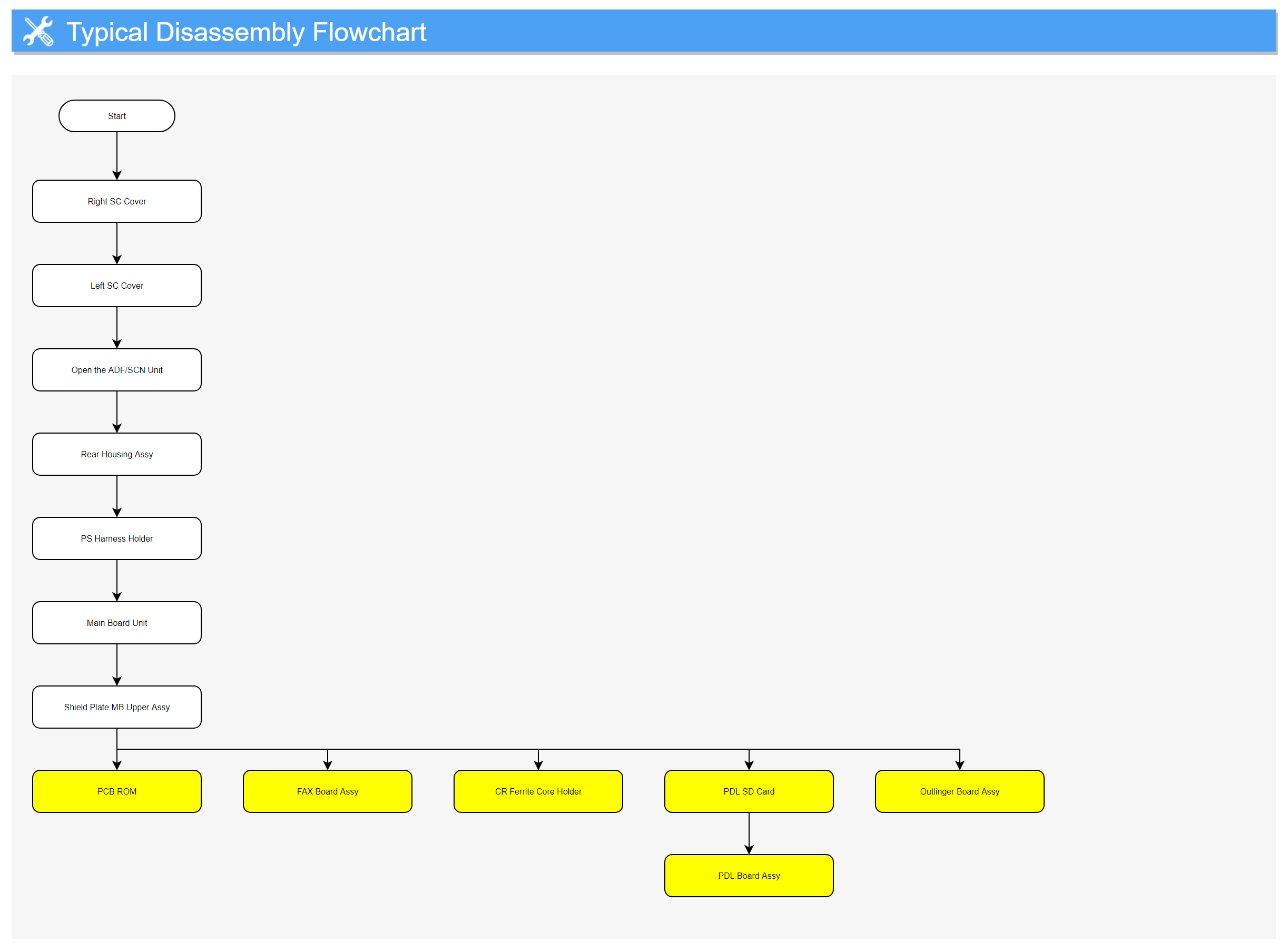

Electric Circuit Components (1/3)

Electric Circuit Components (2/3)

Electric Circuit Components (3/3)

Ink system mechanism

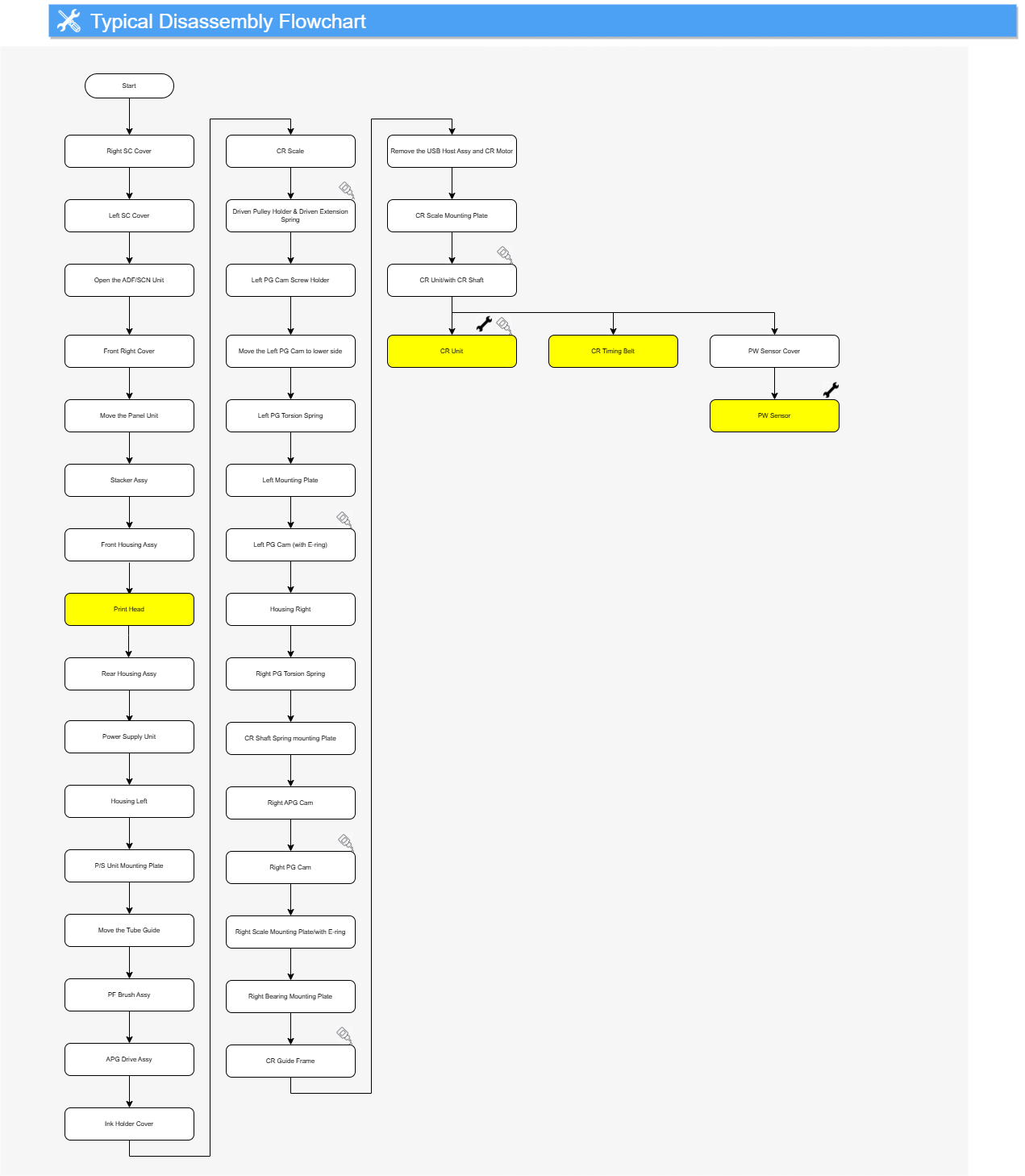

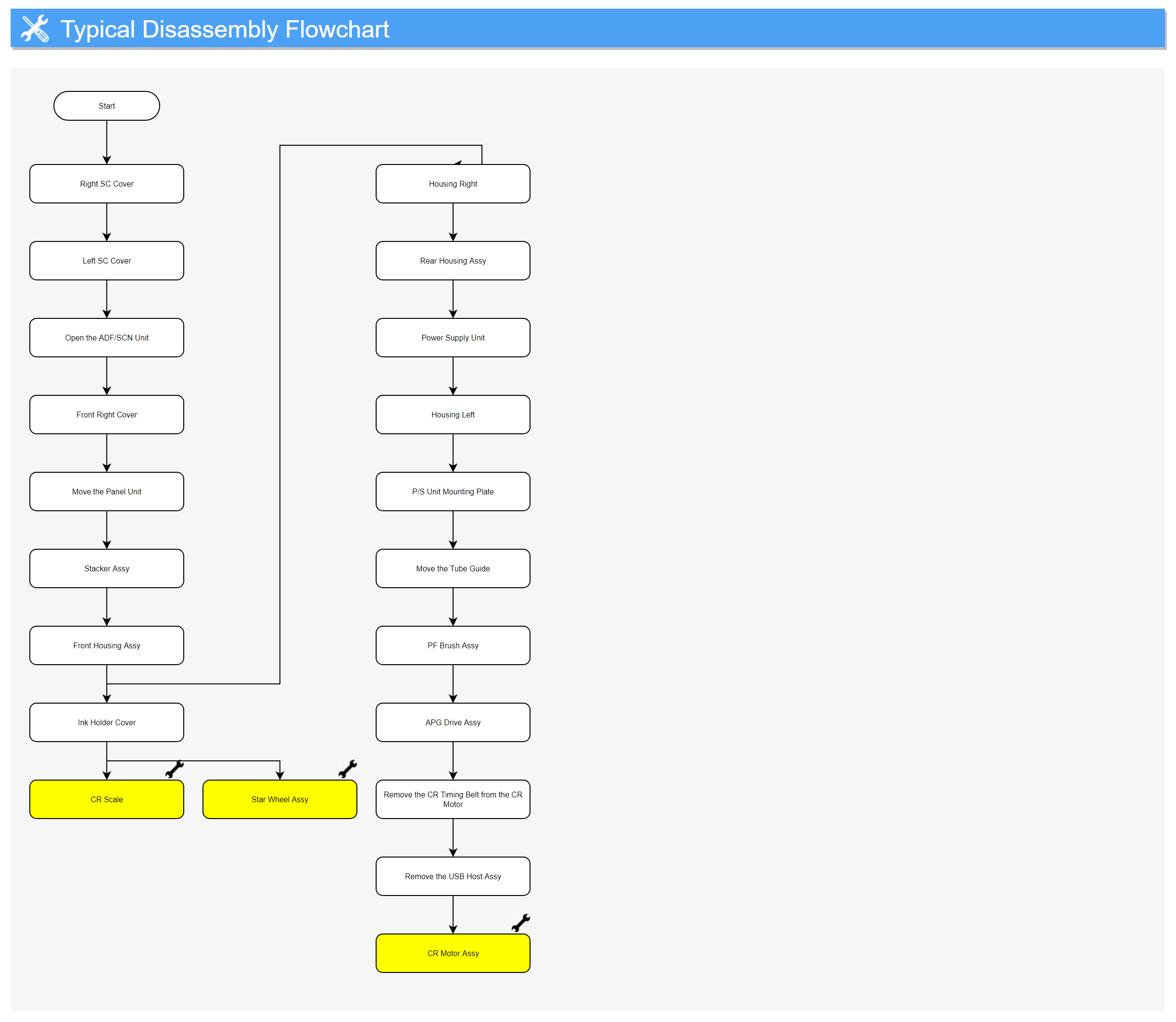

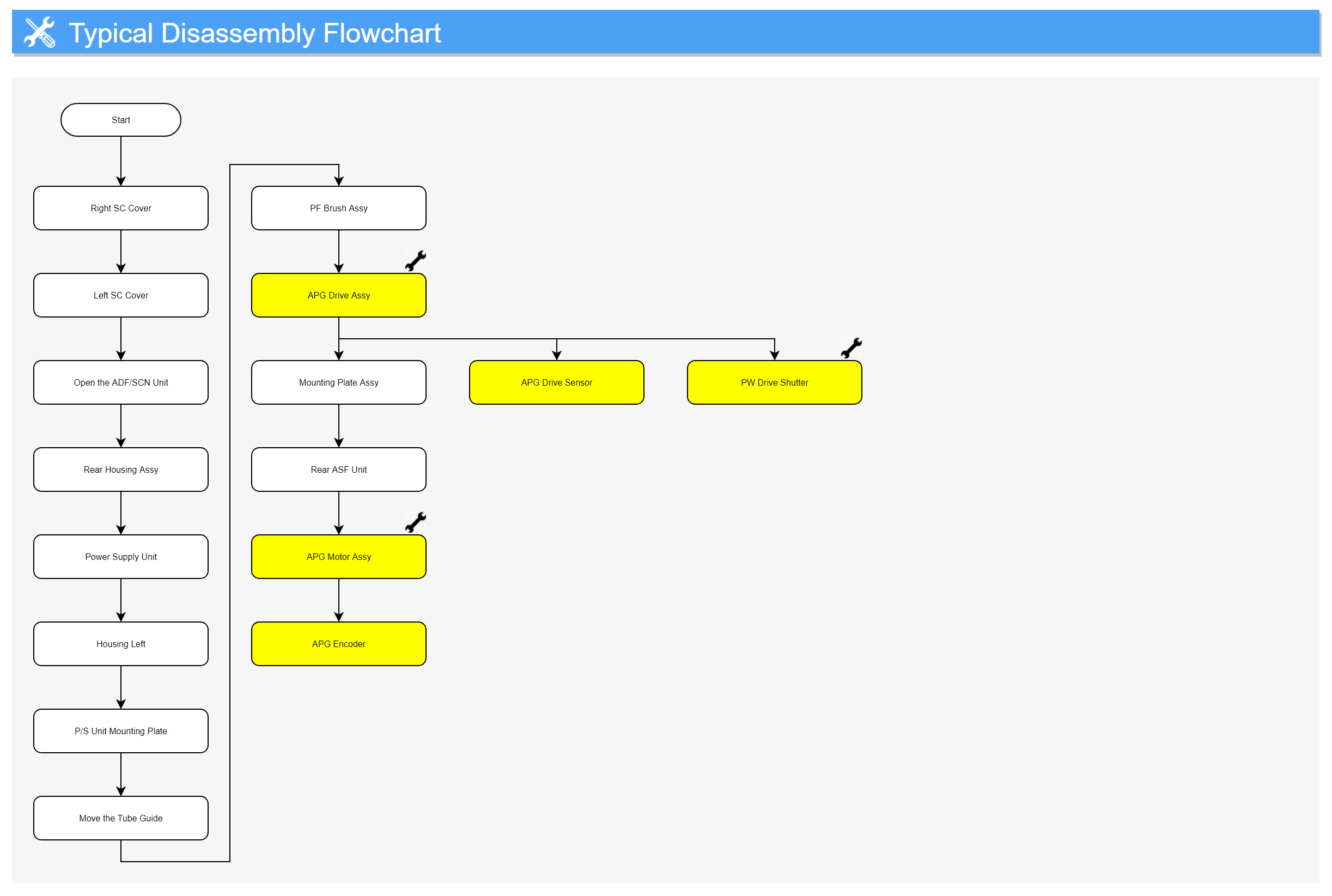

Carriage Mechanism (1/4)

Carriage Mechanism (2/4)

Carriage Mechanism (3/4)

Carriage Mechanism (4/4)

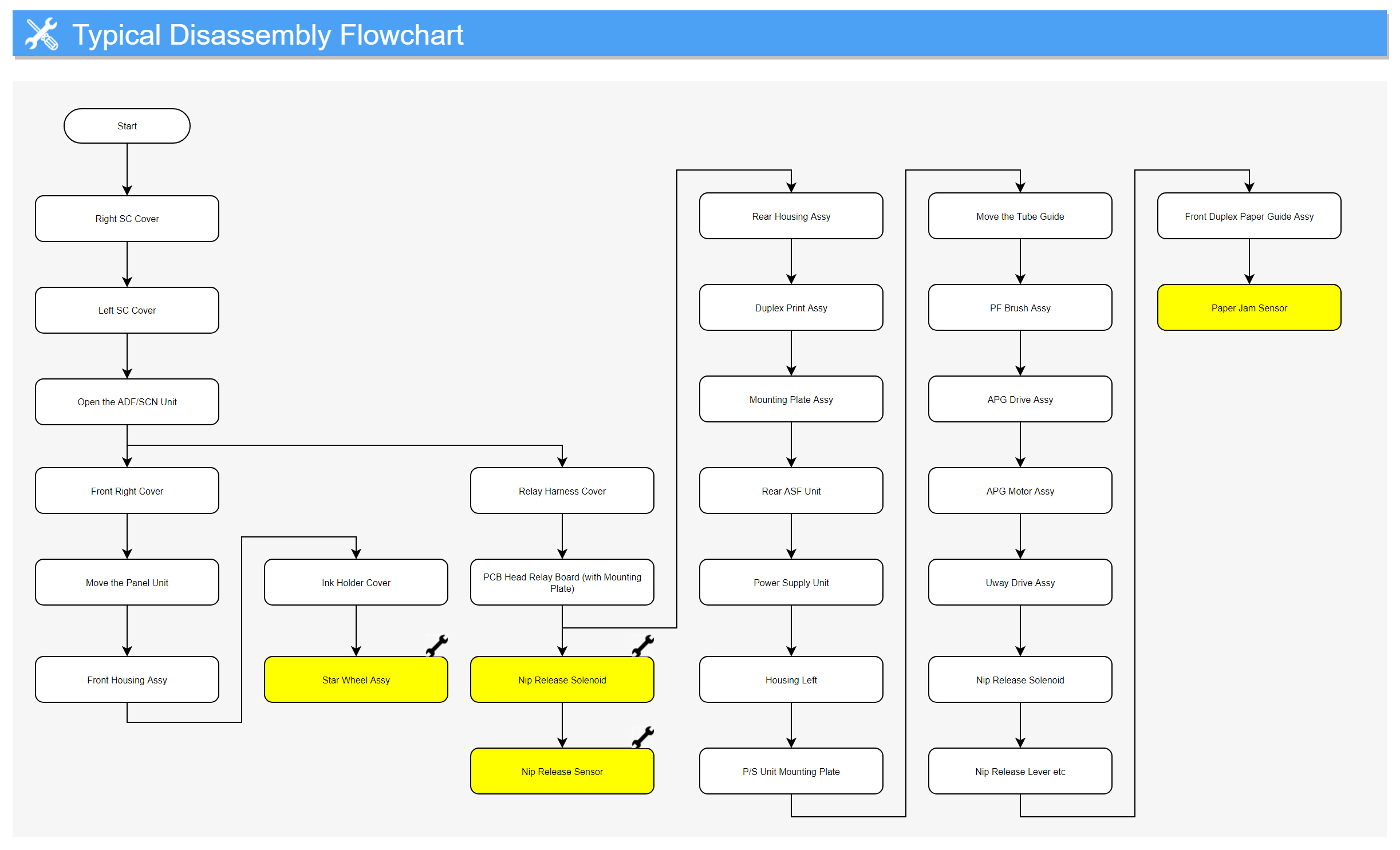

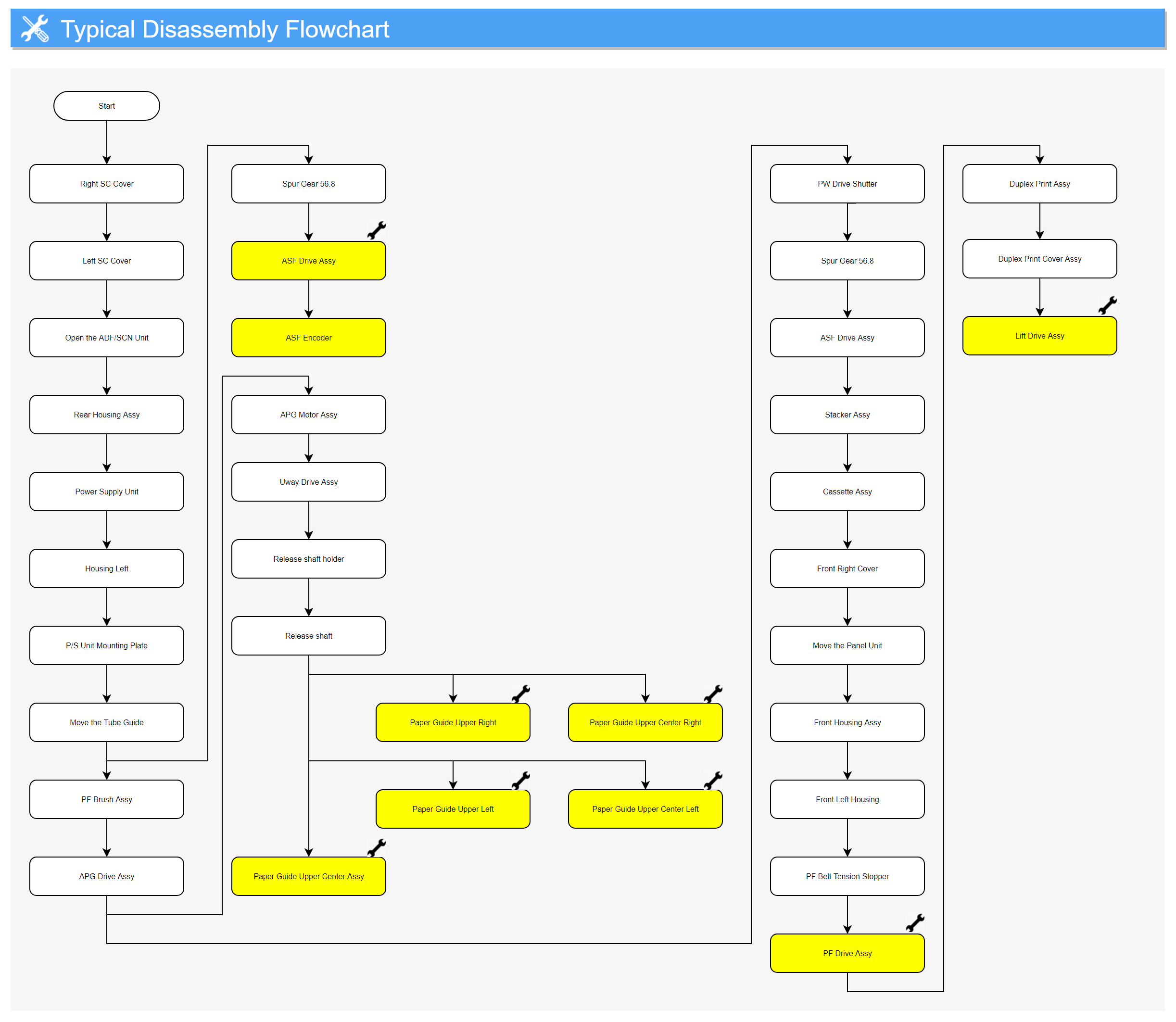

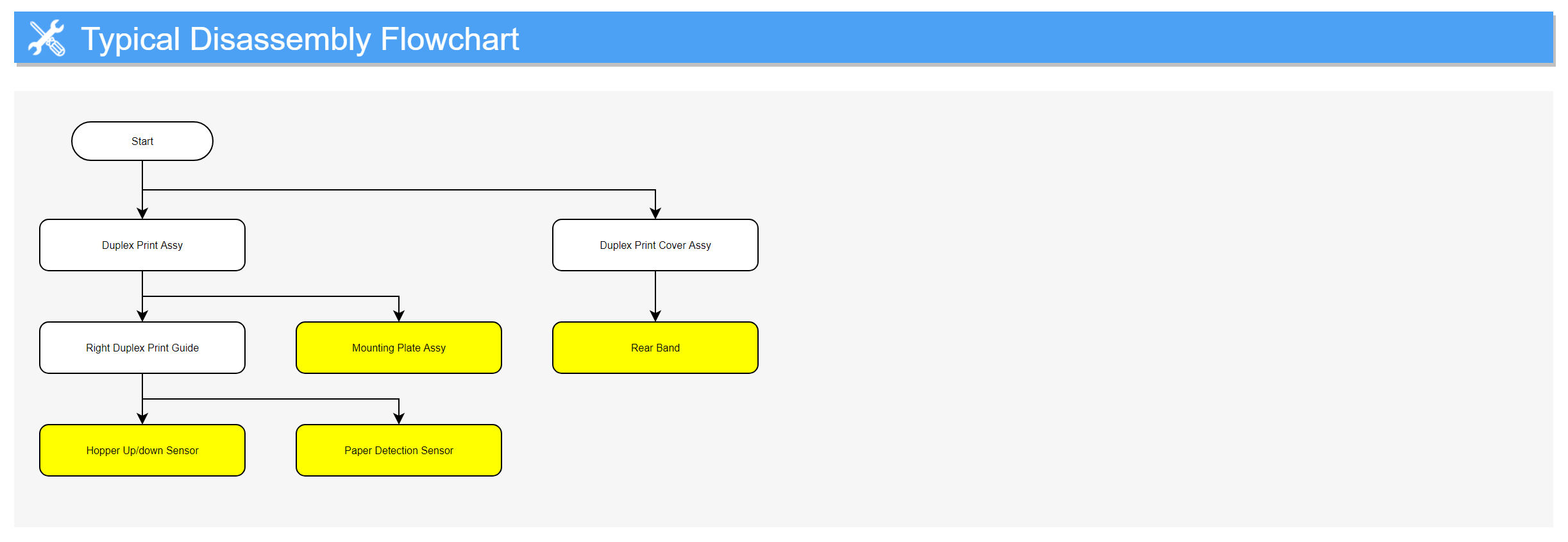

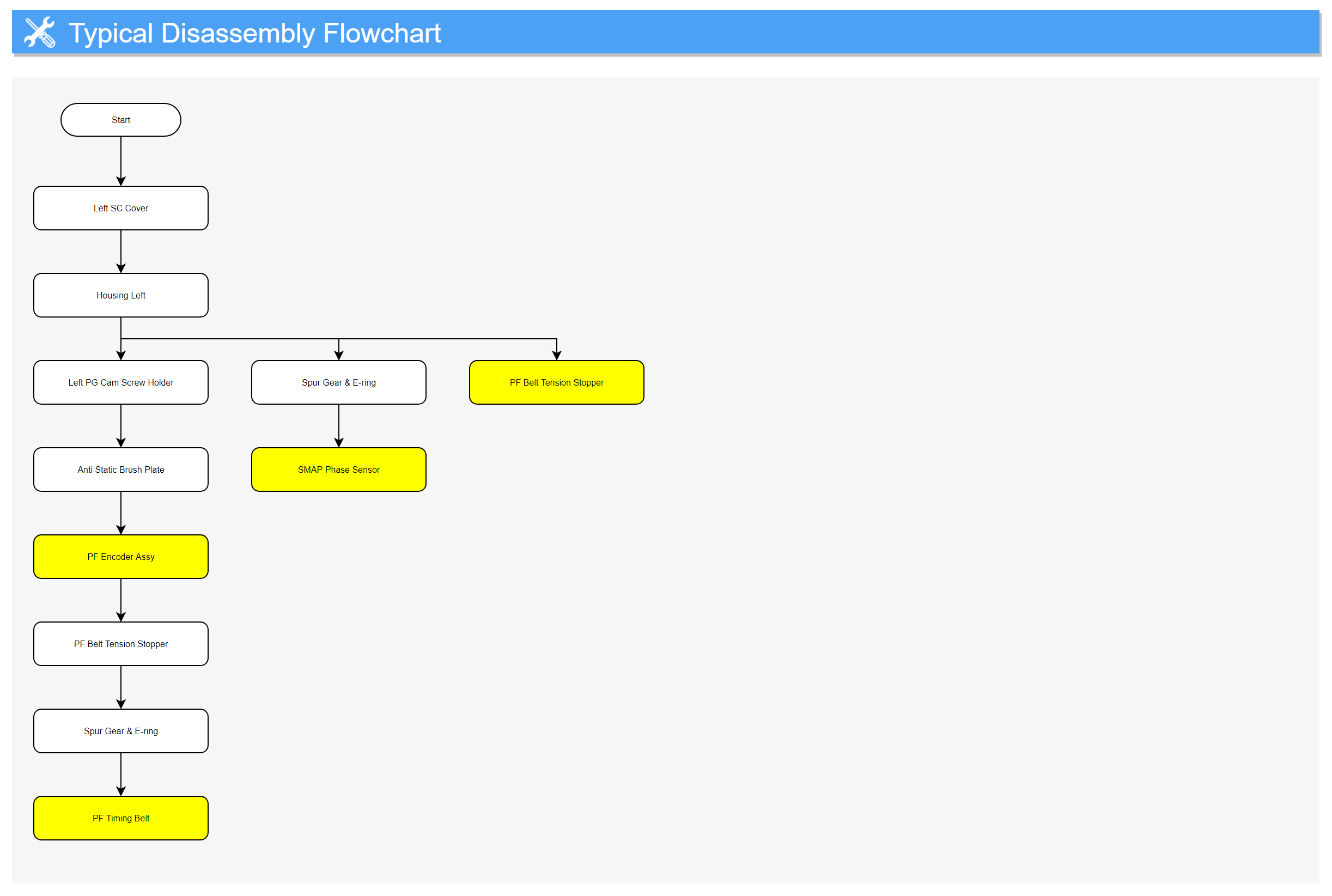

Paper Feed Mechanism (1/6)

Paper Feed Mechanism (2/6)

Paper Feed Mechanism (3/6)

Paper Feed Mechanism (4/6)

Paper Feed Mechanism (5/6)

Paper Feed Mechanism (6/6)

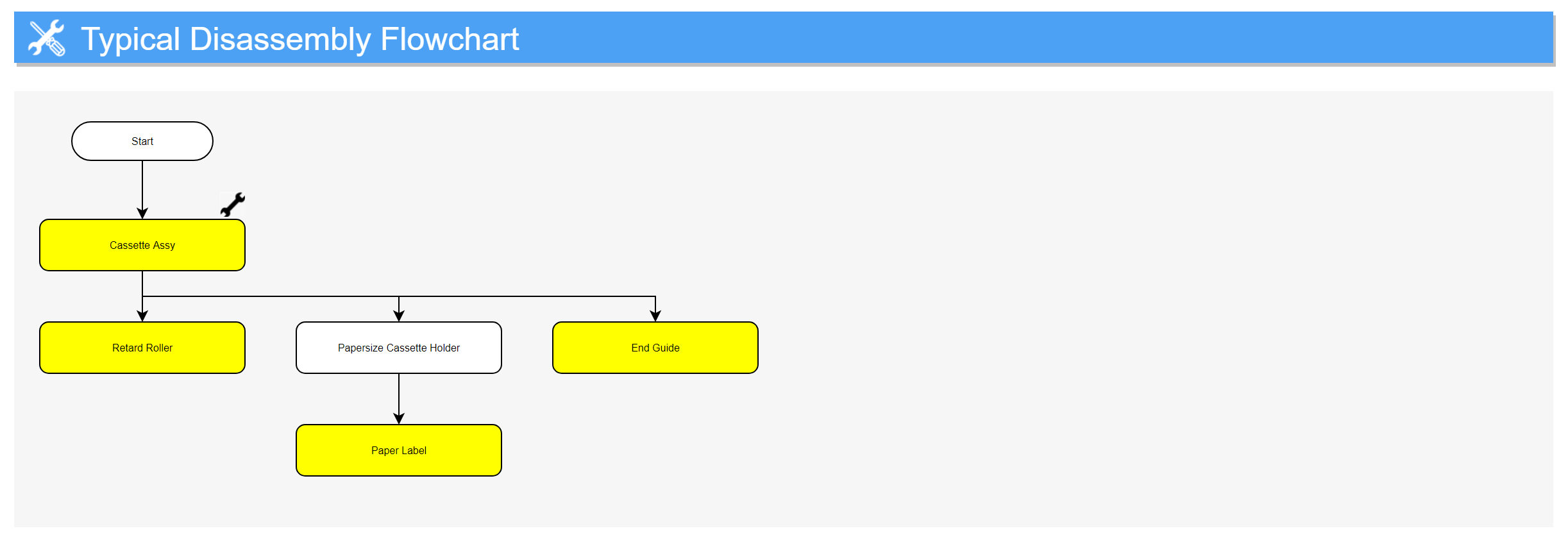

Paper Cassette

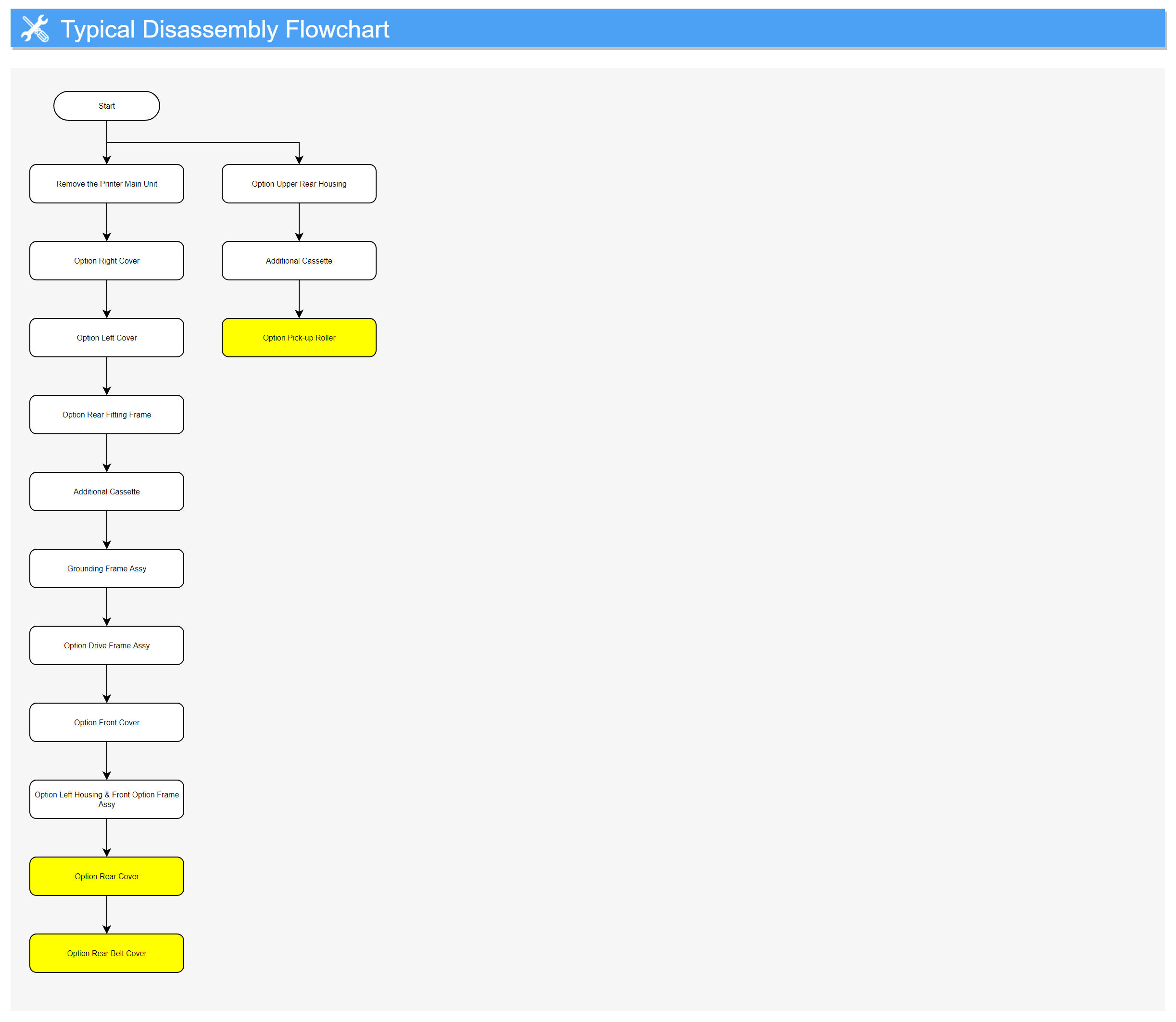

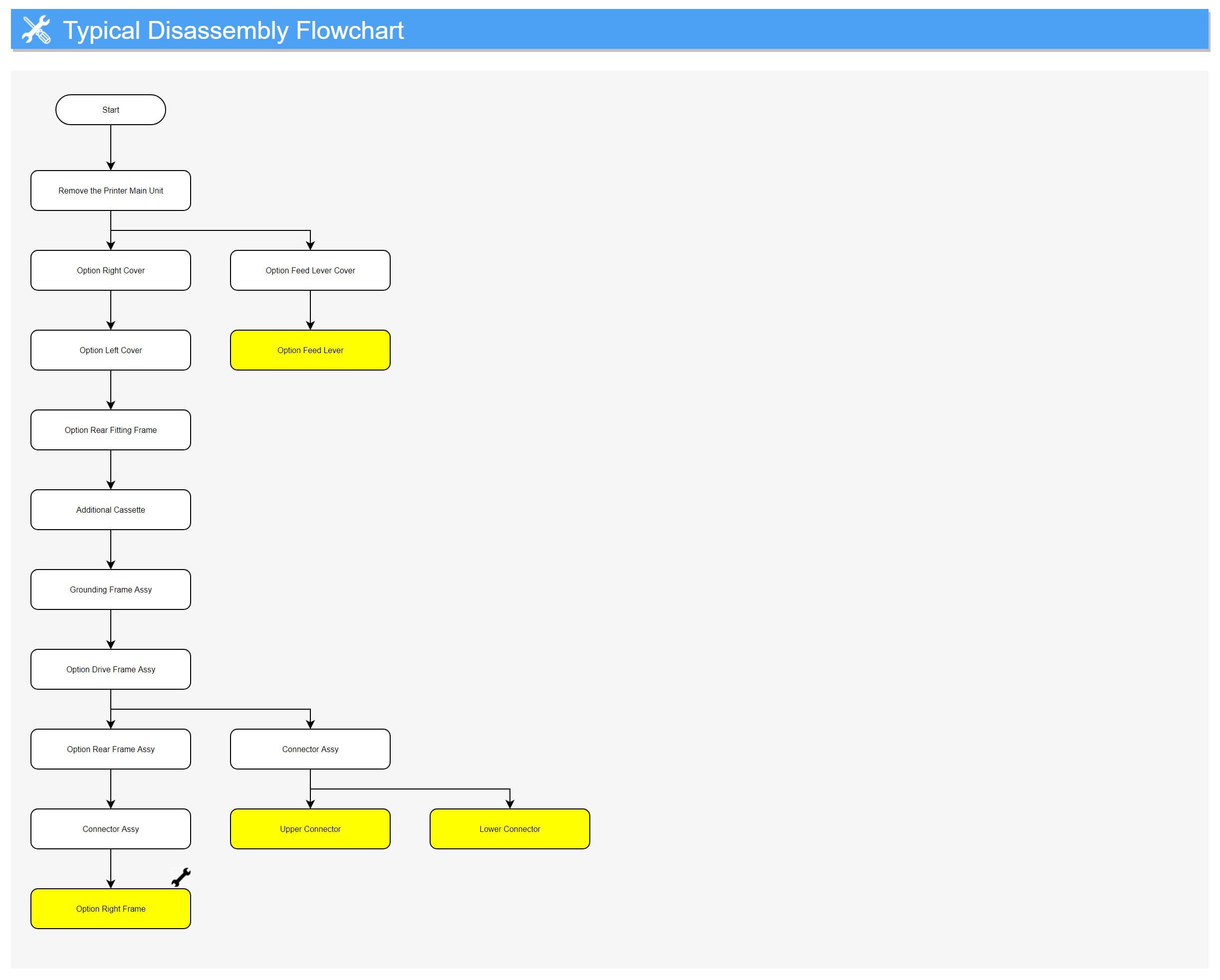

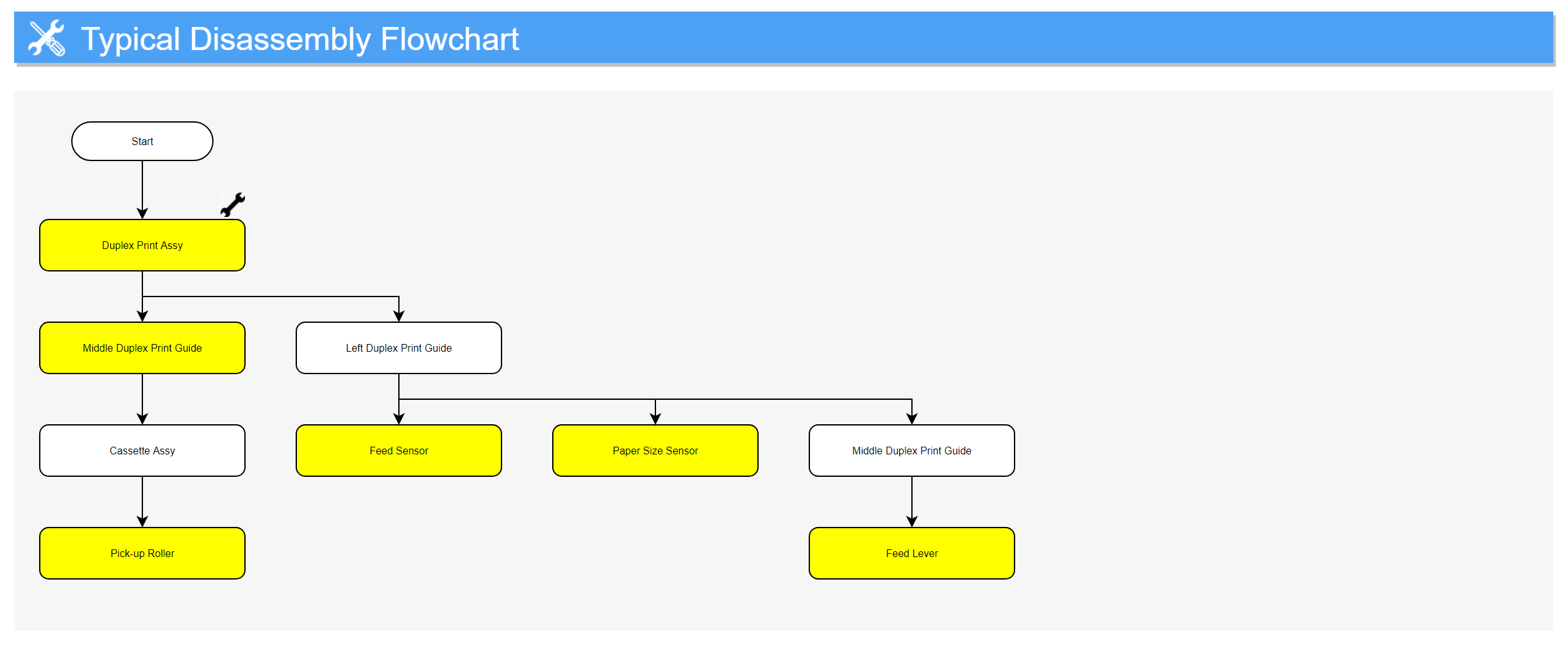

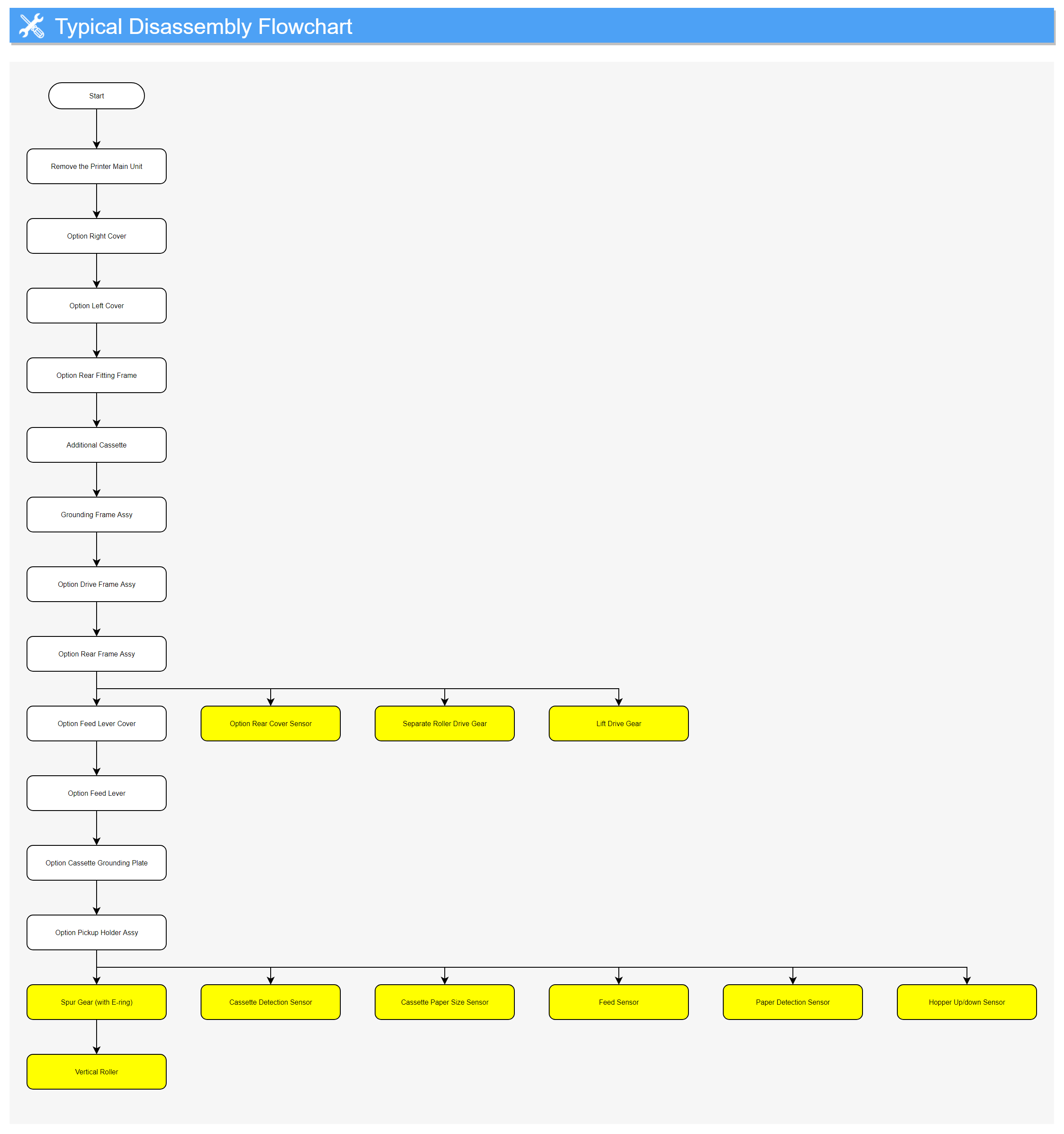

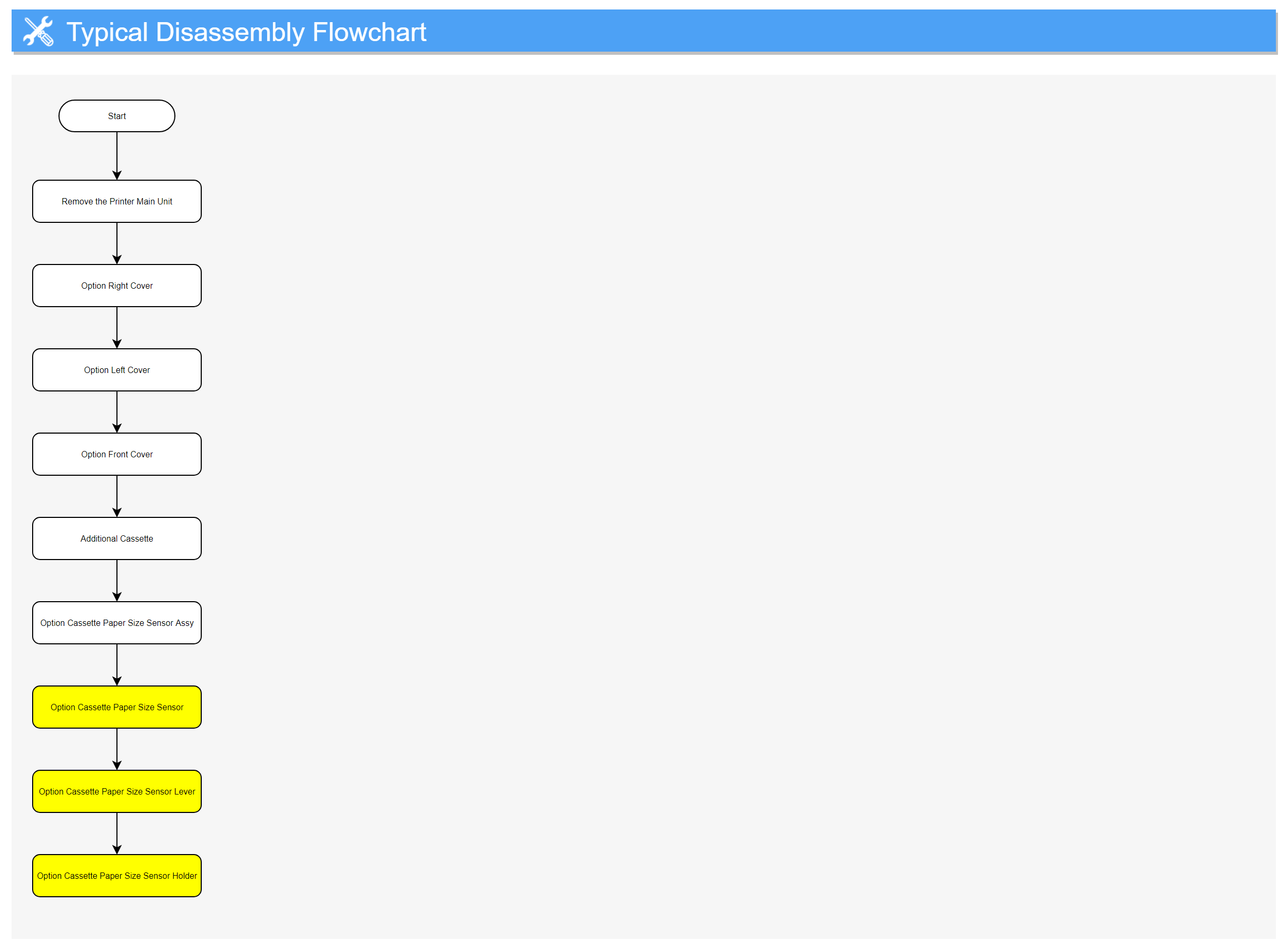

Optional Paper Cassette (1/4)

Optional Paper Cassette (2/4)

Optional Paper Cassette (3/4)

Optional Paper Cassette (4/4)
