# Attaching the cabinet overturn prevention legs

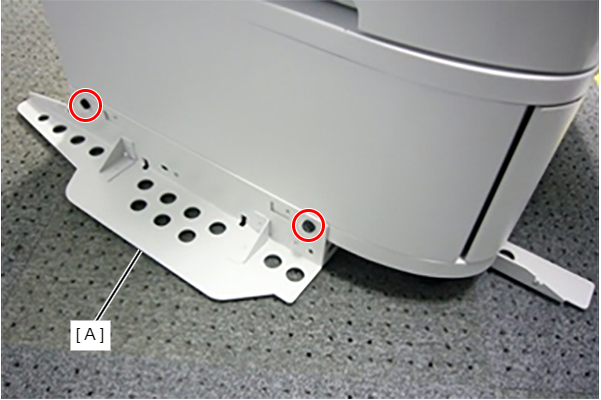

1. Attach the overturn prevention frames (left and right) and secure them with the overturn prevention leg fixing screws.

   Check Point / チェックポイント

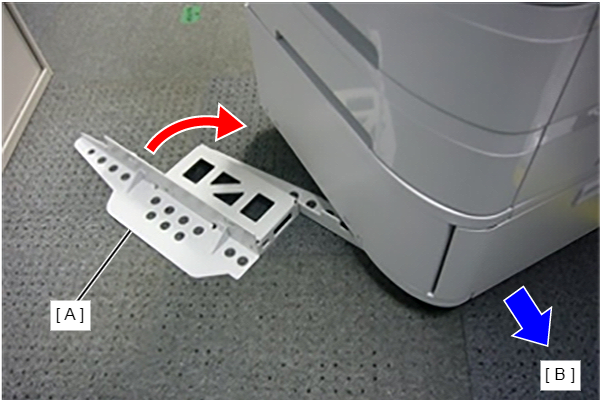

   Pass the overturn prevention leg frames (A) through from the cabinet sides, and then attach them while aligning the ribs of the overturn prevention leg frames (A) with the holes in the cabinet. B: Front

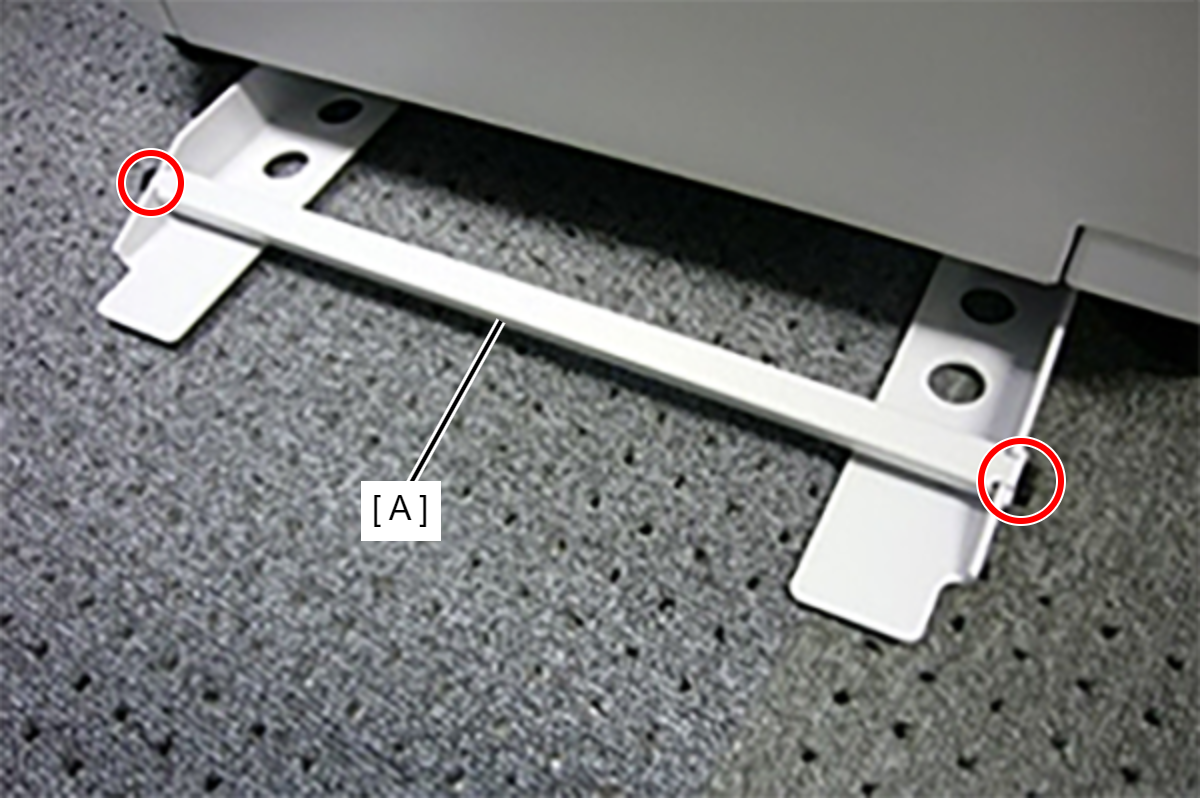

2. Attach the overturn prevention reinforcing frames (front and rear) (A) and secure them with the overturn prevention leg fixing screws.

   • [Front]

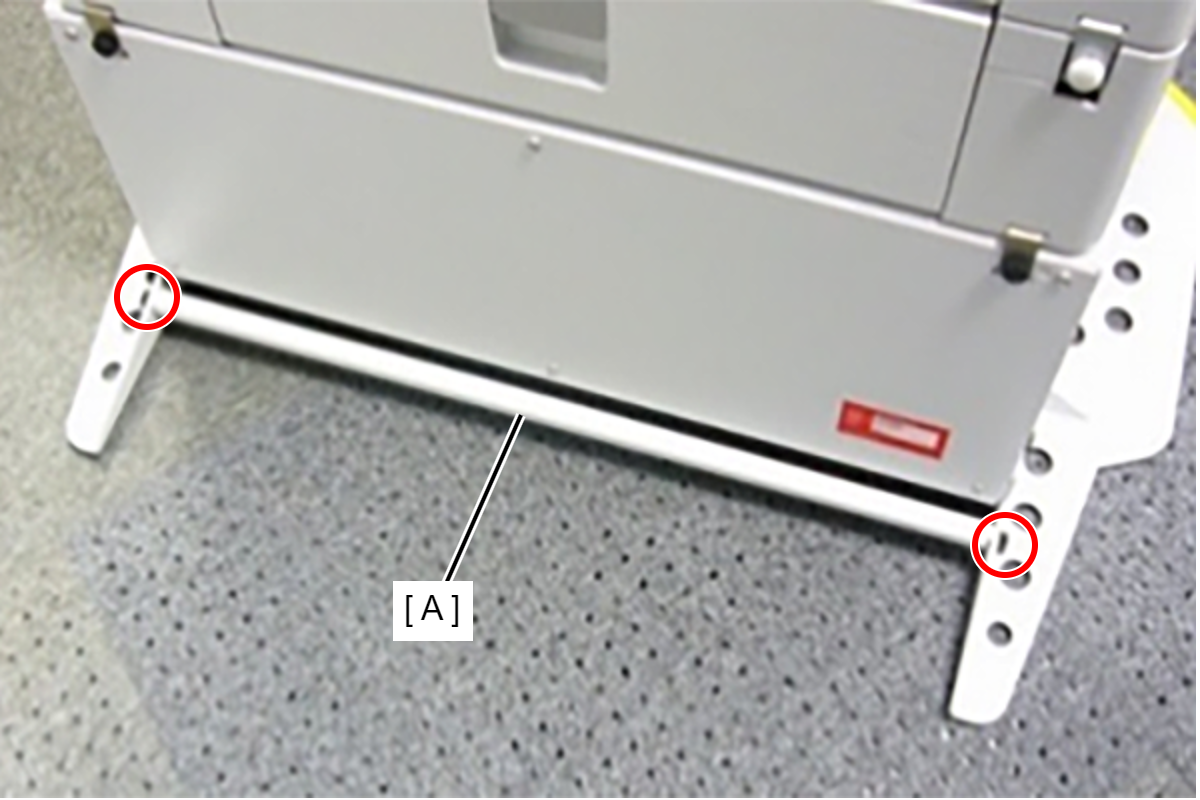

   • [Rear]

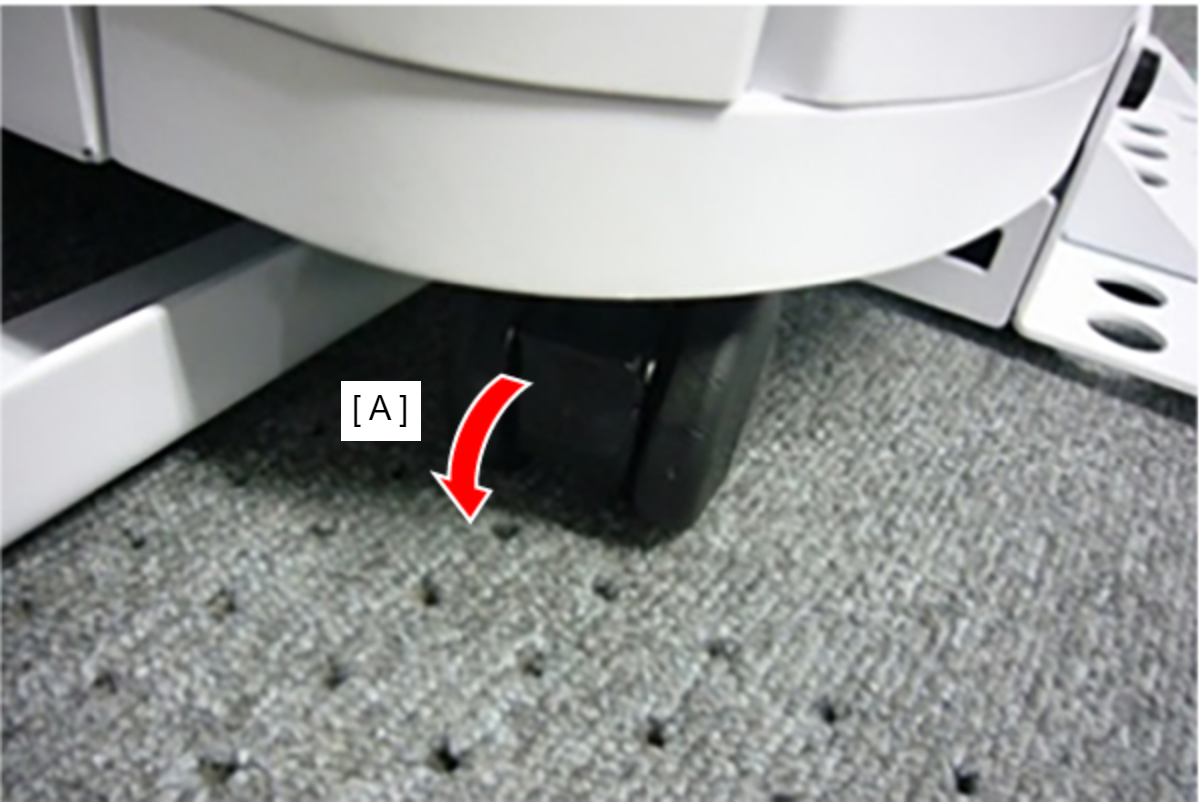

3. Move the cabinet to the installation position and then lock the casters (x2) at the front of the cabinet.




   • A: Lock direction

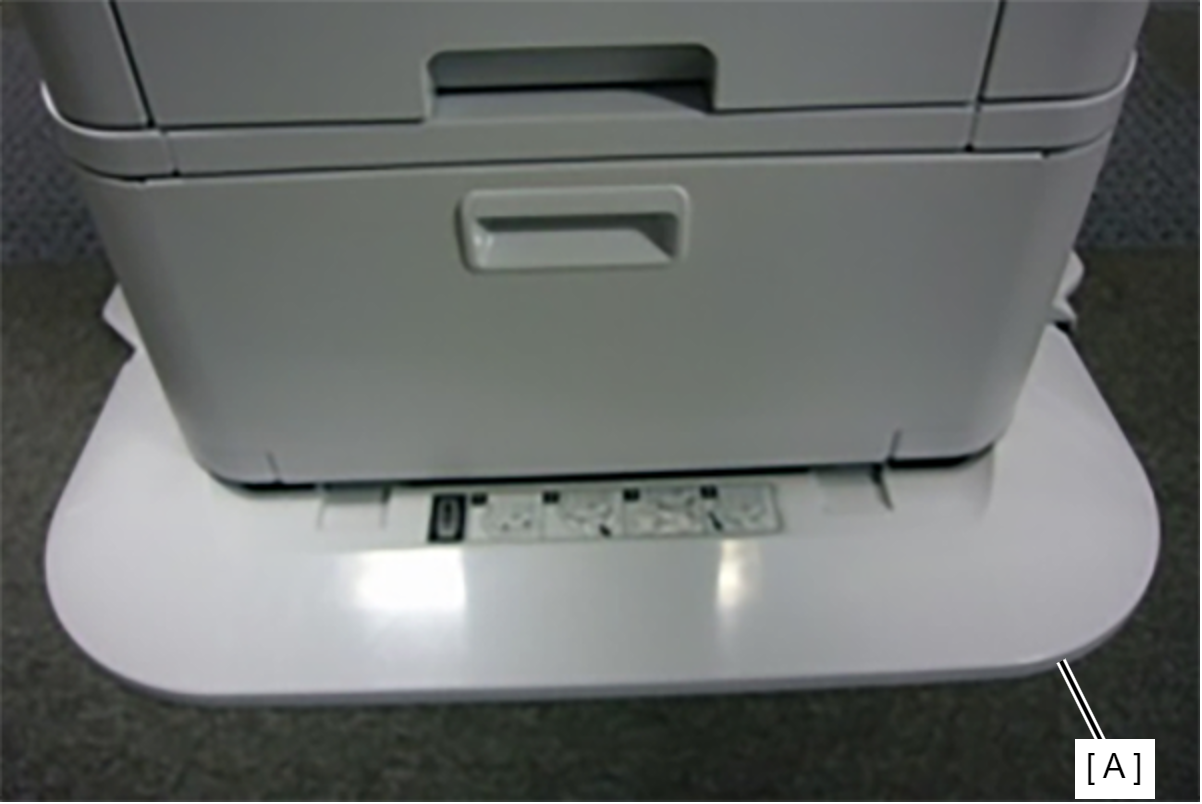

4. Attach the front decorative plate (A).






   Check Point / チェックポイント

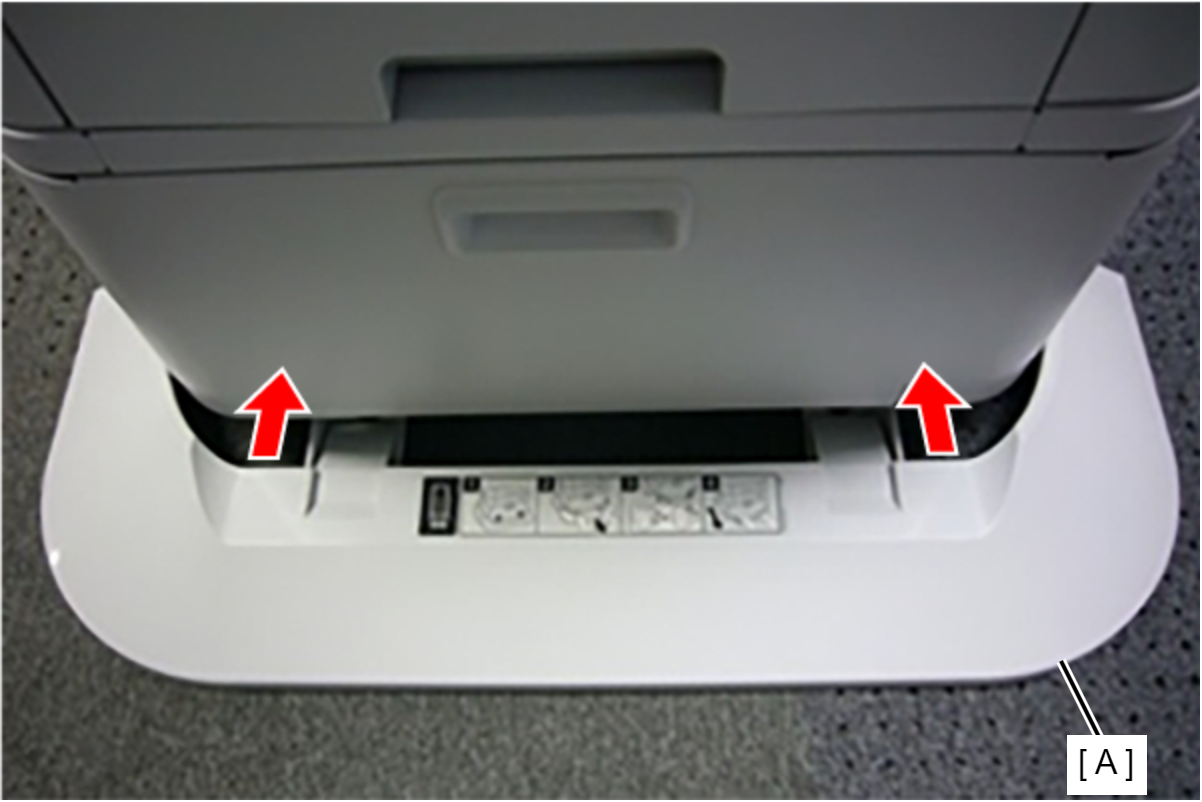

   Before moving the product from the installation position, remove the front decorative plate and unlock the casters (x2).
