# Check Pattern Print (Matte)

#Adjustment pattern

#Checking target

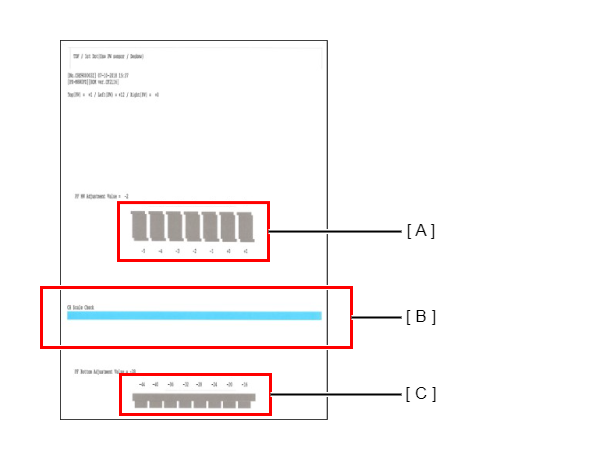

• A: PF Adjust (microweave) failure
• B: Dirt/Scratch on CR Scale
• C: Feed Adjust failure

#Judgment method

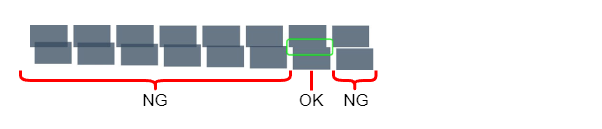

• A, C: Any overlapping of the upper and lower blocks or any white band in the center patch?





  Check Point / チェックポイント

  Make sure the best pattern is printed in the center.



• B: Any print skipping (vertical white band)?

#Remedy

• A, C: 60132 PF/EJ Band Feed Adjustment.
• B: Check the dirt/scratch on the CR Scale.
