60206 FB Scan Position Offset

Overview

Manually adjust the reading start position when scanning using the flatbed (FB).

  • Main Scan
  • Sub Scan
Setting value name Input range Initial value Amount of change
Main Scan -53 ~ 54 0 about 0.1 mm
Sub Scan -53 ~ 54 0 about 0.1 mm
Procedure
  1. Start service support mode. (Starting Service Support Mode)

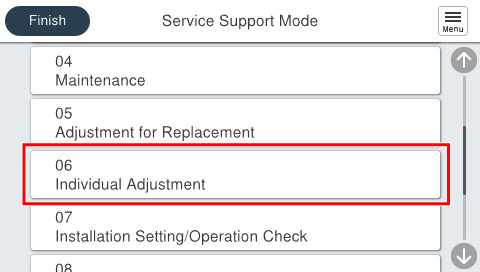

  2. Select [06 Individual Adjustment].
  3. Select [602 ADF/SCN].

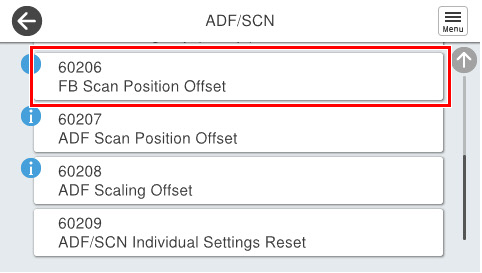

  4. Select [60206 FB Scan Position Offset].

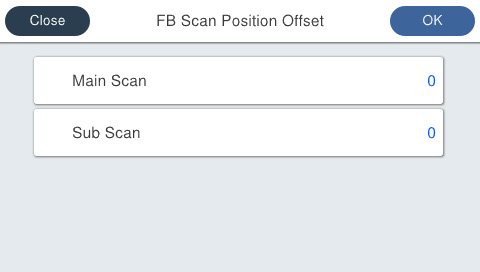

  5. Press [Main Scan] and enter the desired adjustment value.Press [Main Scan] and enter the desired adjustment value.

  6. Press [Sub Scan] and enter the desired adjustment value.

  7. Press [OK].
