Temperature and Humidity Sensor After Parts Replacement
Procedure
- Turn the power ON.

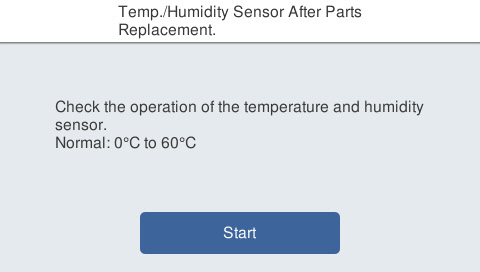

- Press [Start].

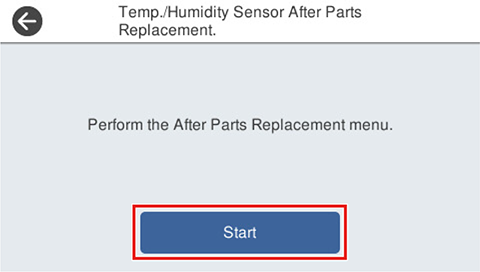

- Press [Start].

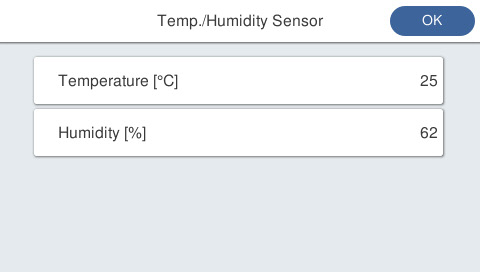

- Check the situation displayed.

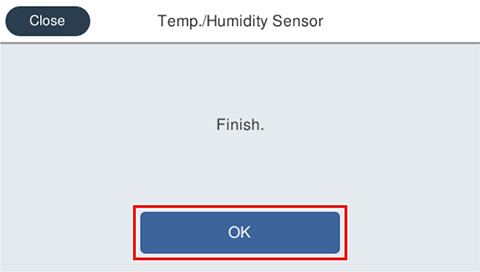

- Press [OK].
