# 60201 Shading Calibration (Back)

#Overview

Perform correction to reduce image unevenness in the CIS module on the ADF side.

#Required Tool

• ADF SHADING SHEET WHITE JIG (Parts code: 1636221)


#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [602 ADF/SCN].

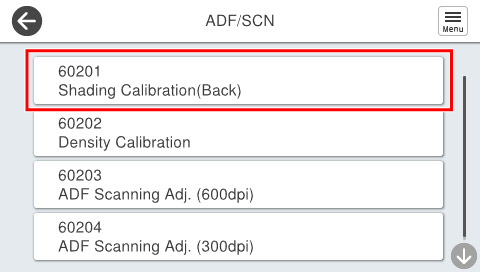

4. Select [60201  Shading Calibration (Back)].

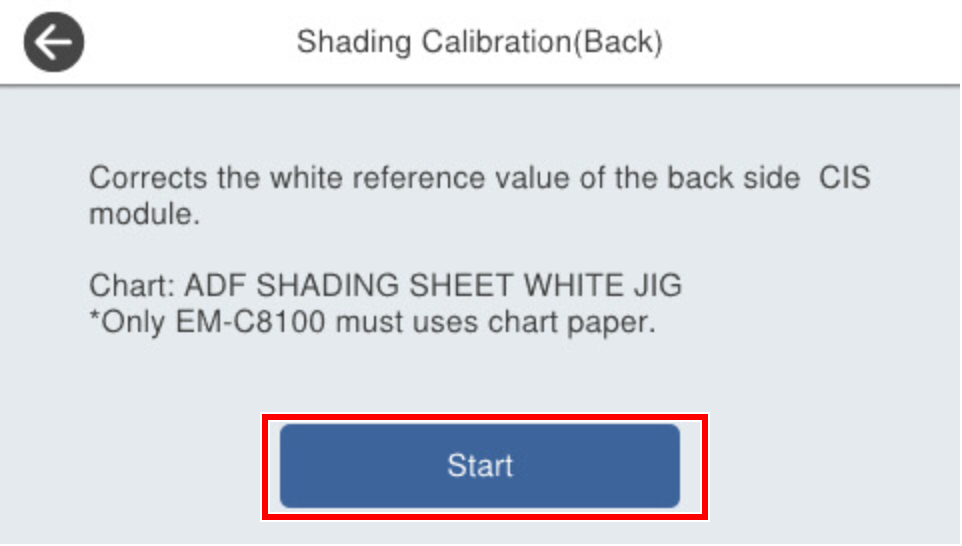

5. Set the chart on the ADF tray and press [Start].

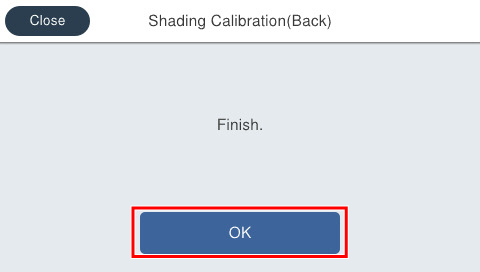

6. If the following screen is displayed, press [OK] to complete.
